Product Details
1. Tracked Skid Steer with Powerful China III Engine
Equipped with a Quanchai 4C6-88C33 high-pressure common rail engine (65KW, China III emission standard), this tracked skid steer delivers strong performance while meeting environmental regulations. Its 1200kg rated operating load ensures efficient material handling in tough conditions.
2. Tracked Skid Steer Featuring German Hydraulic System
Powered by a German INLINE joystick main pump and INLINE/DANFOSS dual-speed motor (11.2/22.4 km/h), this machine offers smooth and
precise control. The 140L/min high-flow hydraulic system (23MPa) supports demanding attachments for enhanced productivity.
3. Tracked Skid Steer with Enhanced Safety & Comfor
The fully enclosed cab includes heating, ventilation, and warning lights for operator comfort and safety. Additional features like rearview mirrors, turn signals, and a reverse camera with buzzer ensure safe operation in busy worksites.
4. Tracked Skid Steer Designed for Heavy-Duty Performance
With a 0.55m³ bucket capacity and hydraulic pilot control, this machine handles loading, digging, and grading with ease. The reinforced aluminum radiator ensures optimal cooling even under continuous heavy use.
5. Tracked Skid Steer with Smart Convenience Features
Modern touches like USB charging ports and key-stop engine shutdown add convenience, while the dual-speed travel motor provides flexibility for both precision tasks and fast travel.
Parameters
| Item Model | Value |
| Engine Mode | Quanchai 4C6-88C33 |
| Emission Phase | China III Emission Standard |
| Rated Power(KW) | 65 |
| Rotating Speed(rpm) | 2200 |
| Max.Speed(km/h) | 9/15 |
| Operating Load(kg) | 1200 |
| Max.Loading(kg) | 3428 |
| Lifting Type | Radial lifting |
| Total Cycling Time(s) | 9 |
| Max.gradeability(°) | 27 |
| Bucket Capacity(m3) | 0.55 |
| Pressure Of Working System(bar) | 235 |
| Rated Flux(L/min) | 76 |
| High Flow Flux (L/min) | 140 |
| Fuel Tank Capacity(L) | 125 |
| Self-weight with Bucket(kg) | 4400 |
| Overall Operating Height (mm) | 4114 |
| Height To Bucket Hinge Pin(mm) | 3184 |
| HeightTo Top Of Cab (mm) | 2065 |
| Height To Bottom Of Level Bucket(mm) | 2987 |
| Overall Length without Bucket(mm) | 2860 |
| Overall Length with Bucket(mm) | 3642 |
| Dumping Height(mm) | 2431 |
| Dumping Reach(mm) | 641 |
| Unloading Angle at Max.height(°) | 41 |
| Rollback Of Bucket On Ground(°) | 26 |
| Ground Clearance (mm) | 288 |
| Angle Of Departure(°) | 32 |
| Front Turning Radius(mm) | 2270 |
| Rear Turning Radius(mm) | 1684 |
| Width (mm) | 1880 |
| Bucket Width(mm) | 1980 |
| Track Grounding Length(mm) | 1527 |
| Track Center Distance(mm) | 1480 |
| Track Plate Width(mm) | 400 |
Product Details
Driving Cabin & JoystickSeat |
 |
Rear ViewMonitor& Mirror |
|
Air Conditioner & Fan |
|
Engine Radiator & Hydraulic Main Pump |
|

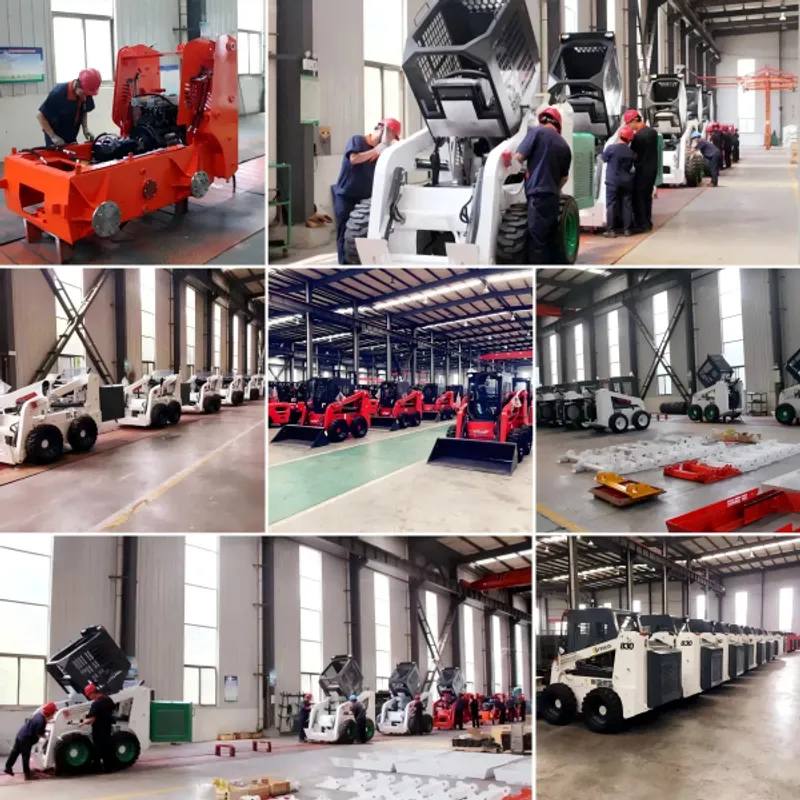

AssemblyProduction |
|
