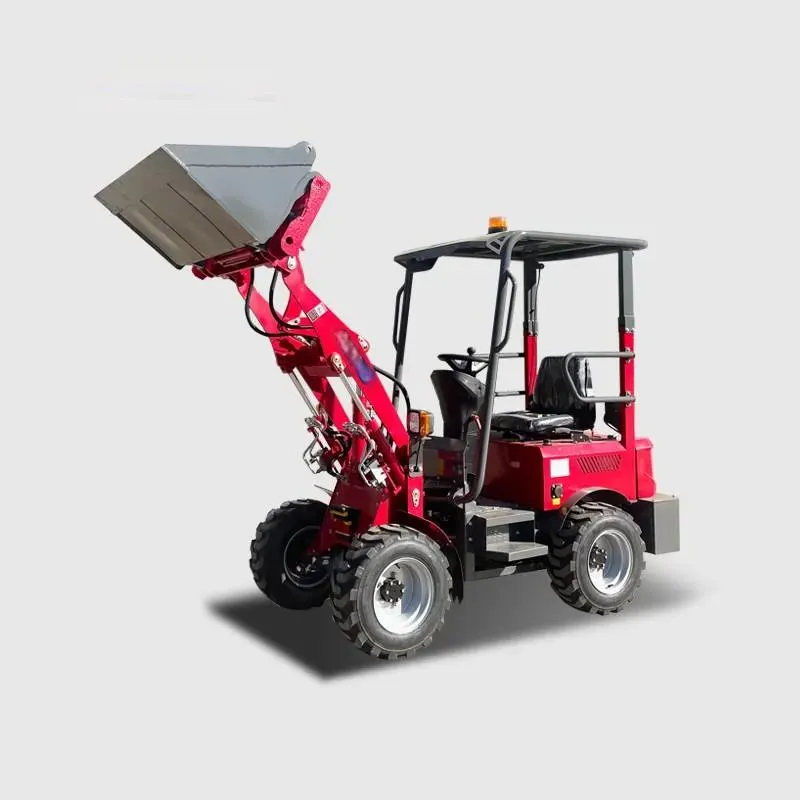

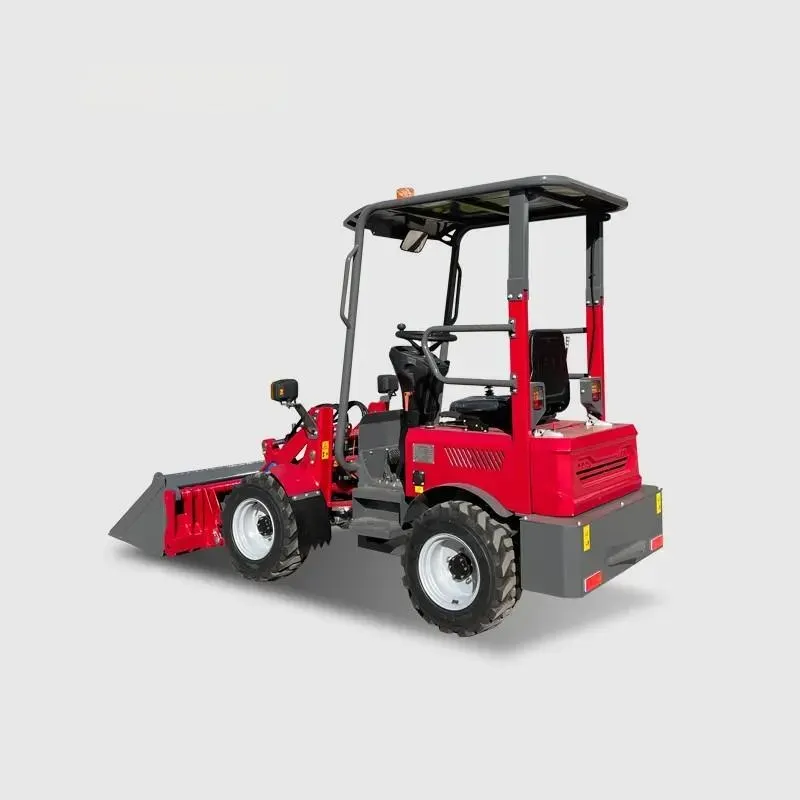

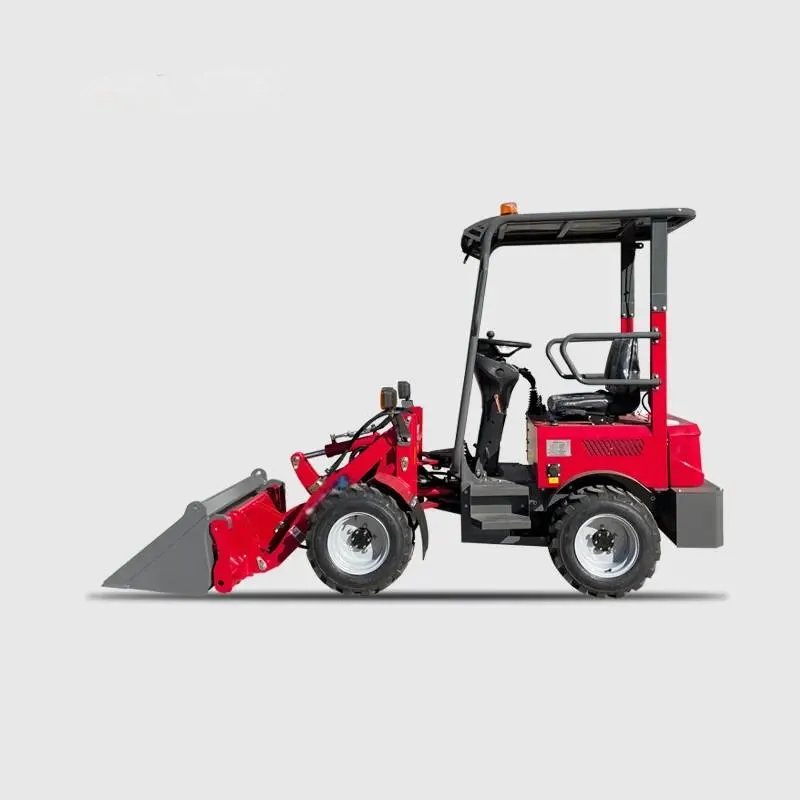

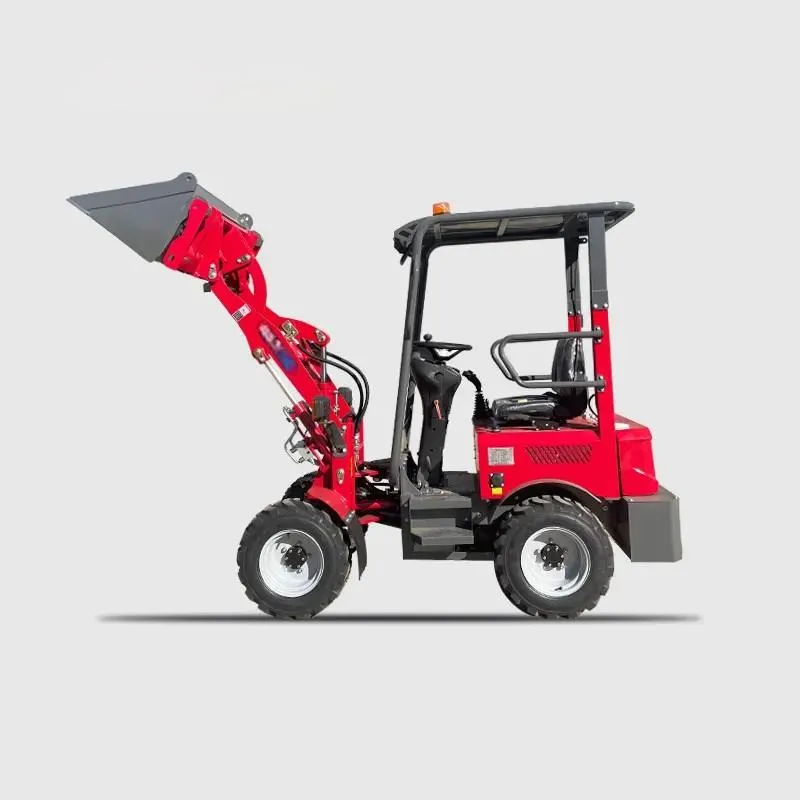

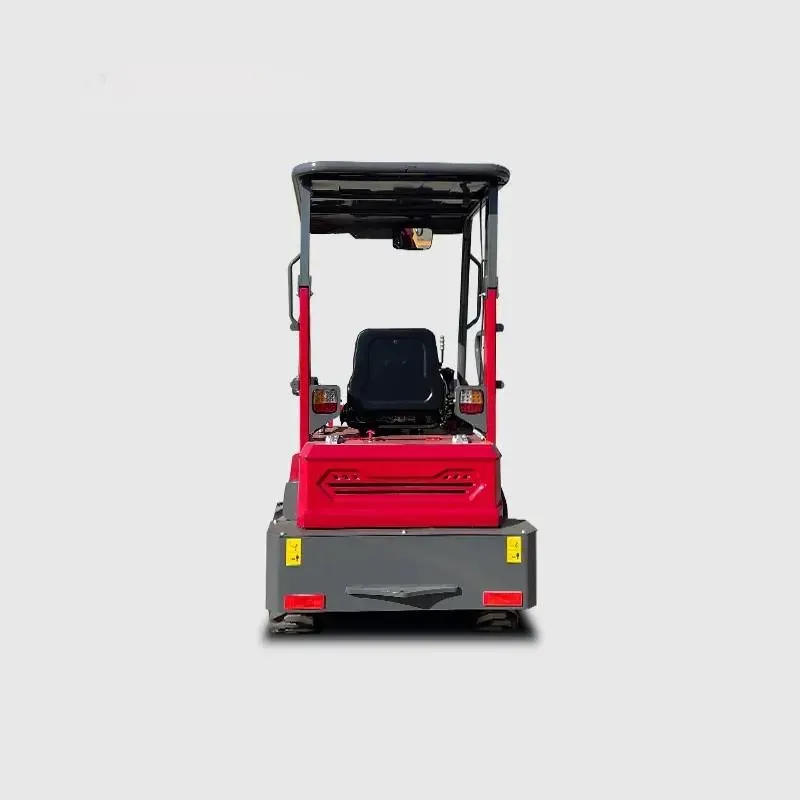

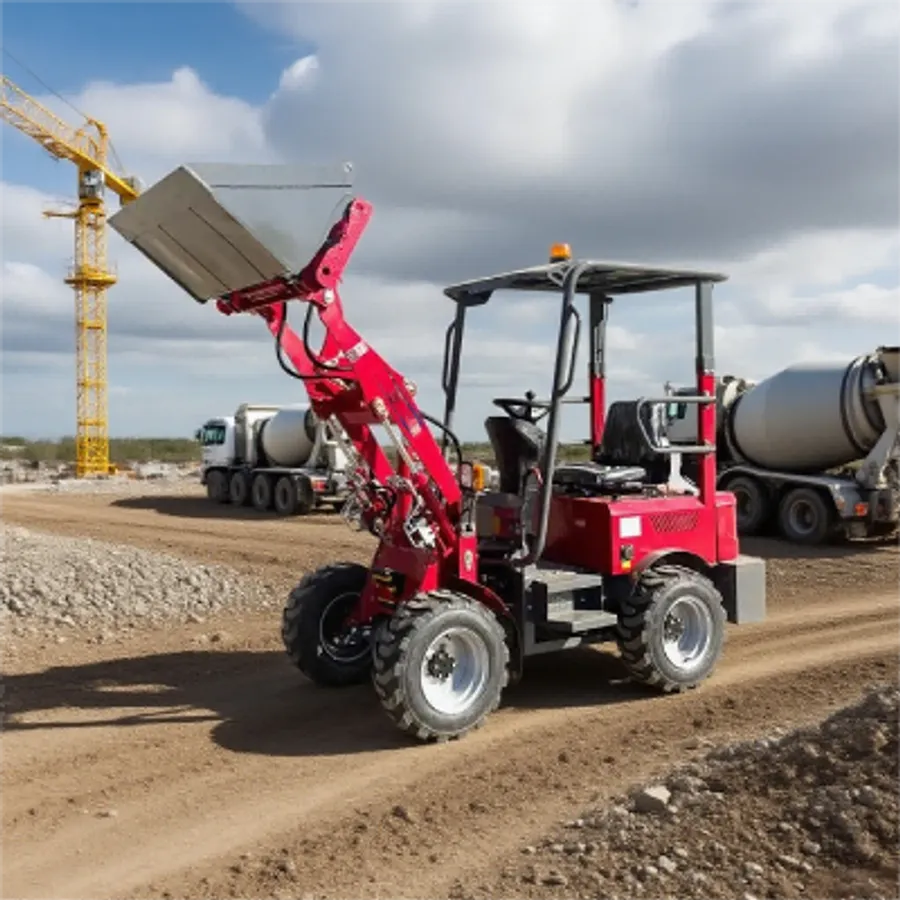

Mini Electric Loader 604

Product Advantages

1.Eco-Friendly & Cost-Effective

Battery-powered with zero emissions, low operating costs, and quiet operation. Perfect for both indoor and outdoor environments where clean and quiet performance matters.

2.Compact & Maneuverable

With a length of 3.3 m and width of 1.1 m, the machine offers excellent mobility in tight spaces. The 1.3 m wheelbase ensures both stability and easy passability.

3.Strong Performance

Rated load capacity of 400 kg and a maximum lifting height of 2.1 m. Designed for efficient digging, lifting, and material handling, even in demanding conditions.

4.Enhanced Safety

Equipped with dual braking systems (driving and parking), warning lights, and a clear electronic display to provide real-time alerts and ensure operator safety.

Product Details

Product Details

1.Mini Electric Loader with Zero Emissions

Battery-powered for quiet, clean, and cost-efficient operation. Ideal for indoor use and environmentally sensitive areas—no fuel, no fumes, no hassle.

2.Strong Performance in a Compact Size

Despite its small footprint (L3260 × W1090 mm), this loader handles up to 400 kg (880 lbs) with ease, delivering the strength you need in tight or confined workspaces.

3.Reliable Traction & Safety

Fitted with 6.00-12 all-terrain tires and a dependable drum oil brake system, it offers stable handling and safe braking, even on rough or uneven ground.

4.High Lift, Easy Loading

With a 2100 mm lift height and 1400 mm dump height, it makes truck and container loading simple—without the cost or bulk of a larger machine.

5.Comfortable & Easy to Operate

An intuitive electric joystick and clear digital display give the operator precise, effortless control, ensuring smooth, productive work throughout the day.

Product Parameters

NTIFICATION	TOTAL WEIGHT	1060KG	RATED LOAD	400KG
	BUCKET CAPACITY	0.2m³	BUCKET WIDTH	1040mm
	LENGTH	3260mm	WIDTH	1090mm
	HEIGHT	2185mm	WHEELBASE	1330mm
	MAX. LIFTING HEIGHT	2100mm	MAX. DUMPING HEIGHT	1400mm
	FUEL TYPE	BATTERY	TYRE	6.00-12 MOUNTAIN TIRE
	WORKING BRAKE	DRUM OIL BRAKE	PARKING BRAKE	DRUM HANDBRAKE
STANDARD	standard bucket,quick hitch,electric joystick,warning lights, electric display
