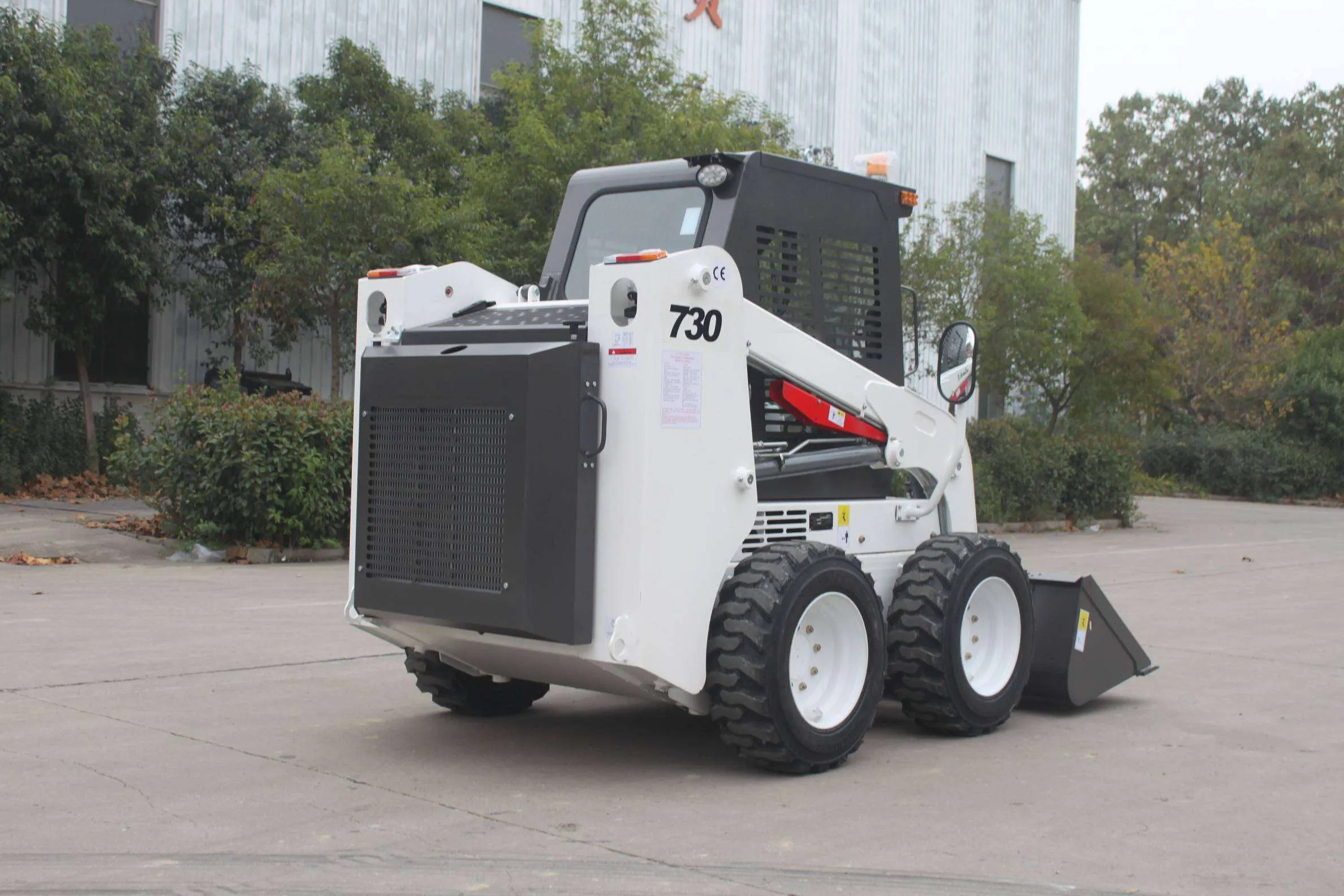

Introduction of the Product

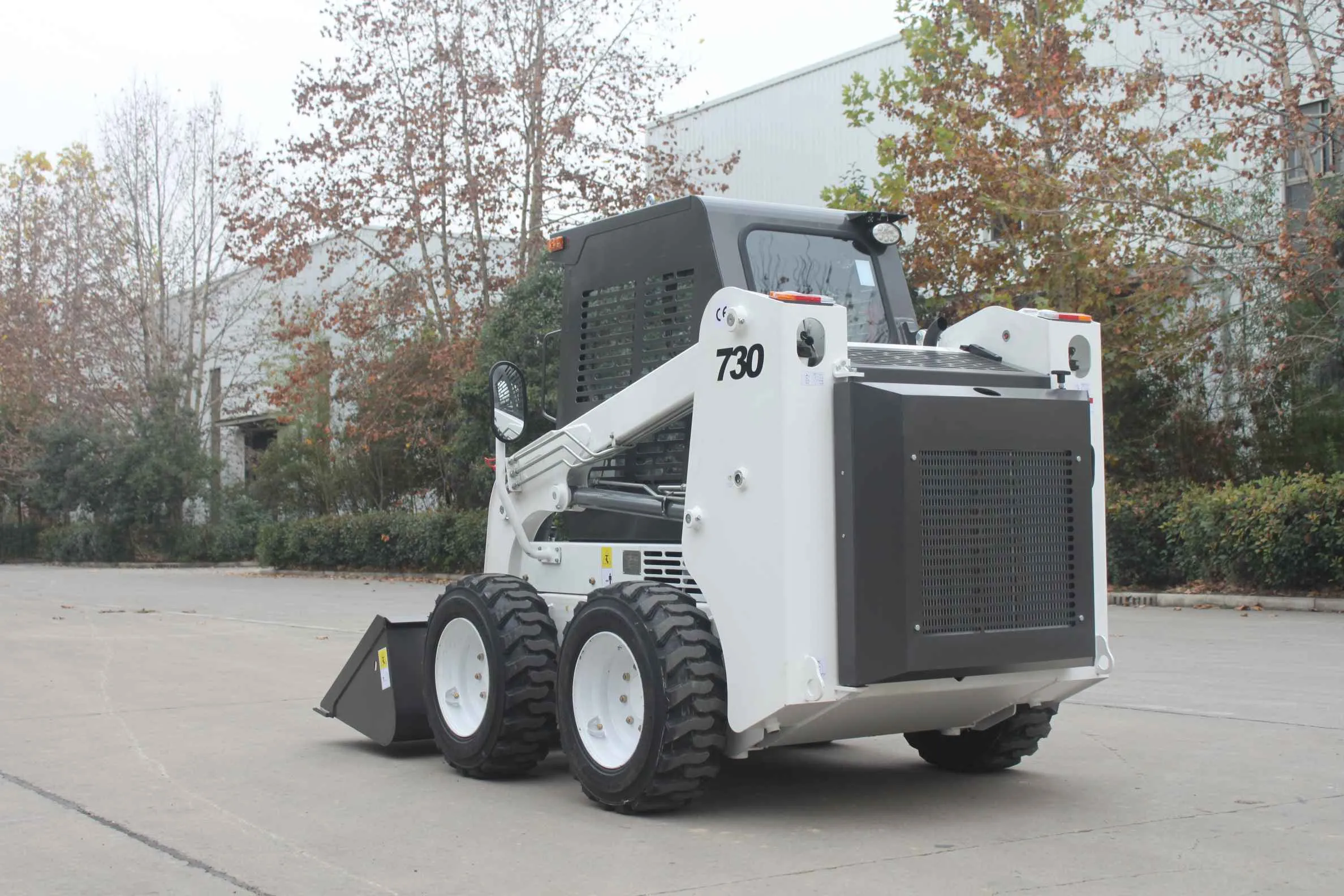

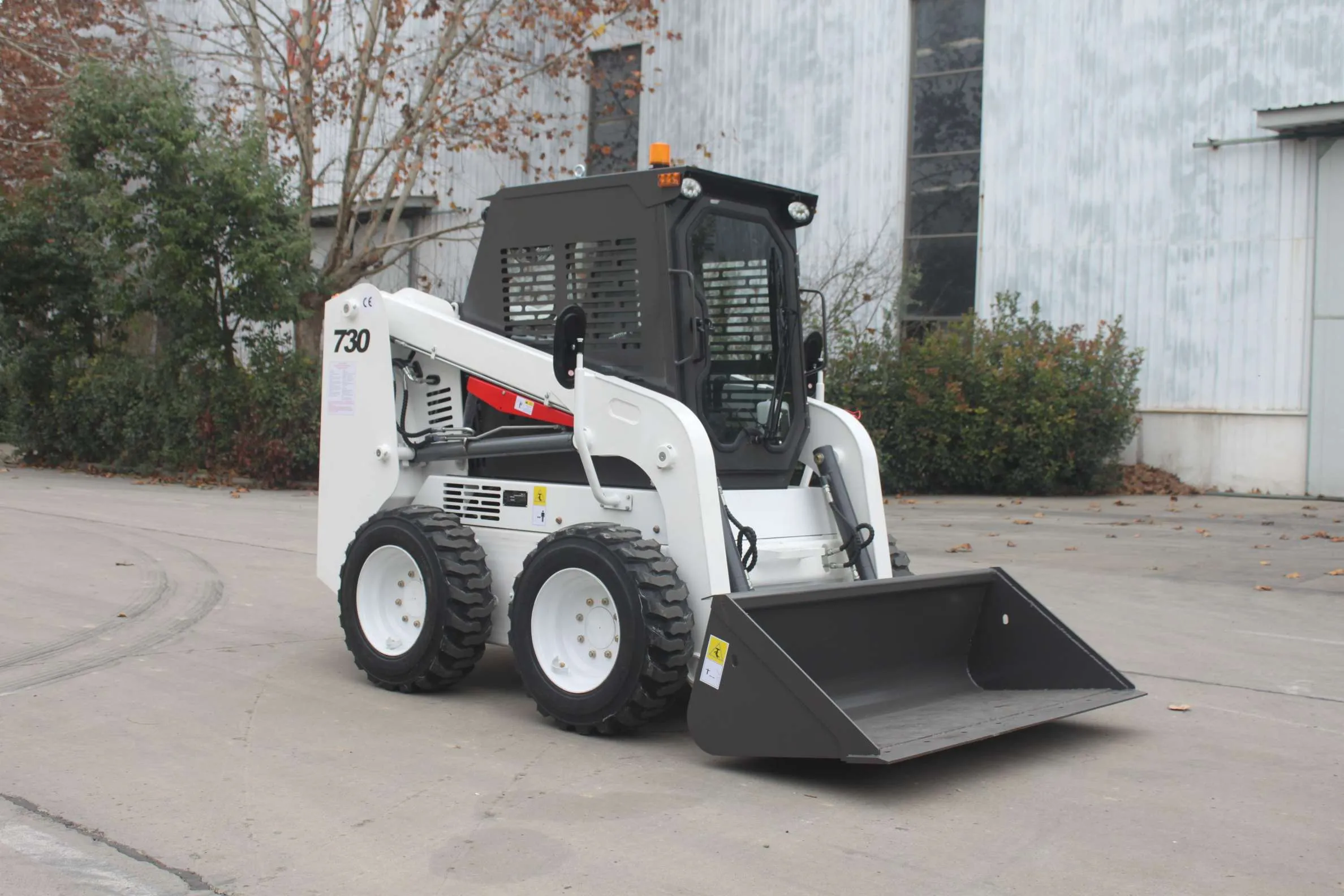

Key Features of Skid Steer Loader 730
1. Engine & Performance
The Skid Steer Loader 730 comes with a strong and reliable China engine, delivering 39KW of rated power.
It runs smoothly at 2650 rpm, so you always get steady and consistent output.
With a top speed of 12 km/h, the loader moves quickly between job sites, cutting down on wasted time.
The 10-16.5 radial tires are built tough, giving you excellent traction whether you’re on soft ground, gravel, or rough terrain.
2. Operating Capacity
Don’t underestimate its size—it may be compact, but it’s built to work hard.
An operating load of 730 kg makes it perfect for medium-duty jobs.
The maximum loading capacity of 1460 kg means it can handle heavier lifts when needed.
A radial lifting arm ensures smooth digging, grading, and lifting.
With a total cycle time of 10.2 seconds, you’ll notice faster, more efficient work cycles without losing accuracy.3. Hydraulic System
3. Hydraulic System
The hydraulic system is designed for durability, running at 180 bar of pressure.
A rated flow of 80 L/min gives you enough power to run a wide range of attachments.
No high-flow hydraulics? That’s intentional—it keeps things simple, dependable, and easy to maintain. Lower maintenance means lower costs in the long run.
4. Bucket & Material Handling
Standard bucket size: 0.47 m³—big enough for soil, gravel, sand, and other bulk materials.
Strong, durable, and built to take on tough jobsite conditions day after day.
5. Fuel & Weight
An 81-liter fuel tank keeps the loader running for long stretches, so you’re not stopping constantly to refuel.
Weighing 2850 kg with the bucket attached, the loader is stable and safe to operate, even when lifting at capacity.
6. Control Options
Operators get to choose between manual controls and joystick controls.
Manual controls are straightforward and reliable—great for operators who like simplicity.
Joystick controls feel modern and precise, making handling smooth and easy, especially during long shifts.
Why Choose the Skid Steer Loader 730?
Compact but powerful – It’s small enough to fit into tight urban job sites, yet strong enough to handle demanding tasks.
Versatile – Easily switch attachments for digging, loading, grading, landscaping, and more.
Durable build – Designed to handle heavy use with less downtime, giving you a longer service life.
Operator-friendly – Comfortable controls and smooth handling reduce fatigue during long workdays.
Fuel efficient – The engine is designed to balance power with lower fuel consumption, keeping your operating costs in check.
Product Details
1. Safe and comfortable bran-new operator environment , Highly reliable ROPS and FOPS cabin.
2. World -class quality power source ,Amercia Danfoss pump , France Poclain hydraulic motor with parking brake.
3.The upper cover open easily. Cabin wide-angle turn , it is more conveninet for daily maintenance .
4.Long life and easy driving system.
5.360 degree steering , can work with 40 kinds of attachments, auger , breaker, trancher , 4 in 1 bucket, pallet fork etc..
Parameters
Model | 730 |
Engine Model | China Engine |
Rated Power(KW) | 39 |
Rotating Speed(rpm) | 2650 |
Max.Speed(km/h) | 12 |
Tire | 10-16.5 |
Operating Load(kg) | 730 |
Max.Loading(kg) | 1460 |
Lifting Type | Radial |
Total Cycling Time(s) | 10.2 |
Bucket Capacity(m3) | 0.47 |
Pressure Of Working System (bar) | 180 |
Rated Flux(L/min) | 80 |
High Flow Flux(L/min) | without |
Fuel Tank Capacity(L) | 81 |
Self-weight With Bucket(kg) | 2850 |
Control Type | Manual/ |
Overall Operating Height (mm) | 3897 |
Height To Bucket Hinge Pin (mm) | 2982 |
Height To Top Of Cab(mm) | 2090 |
Height To Bottom Of Level Bucket(mm) | 2855 |
Overall Length Without Bucket(mm) | 2536 |
Overall Length With Bucket(mm) | 3352 |
DumpingHeight (mm) | 2266 |
Dumping Reach (mm) | 662 |
Rollback Of Bucket On Ground() | 25 |
Ground Clearance (mm) | 210 |
Angle Of Departure() | 30 |
Front TurningRadius without Bucket(mm) | 1252 |
Front Turning Radius(mm) | 2052 |
Rear Turning Radius (mm) | 1516 |
Width (mm) | 1730 |
BucketWidth(mm) | 1800 |
Optional Configuration | |
Optional Engine | Xinchai,Quanchai,Kohler,Japan Isuzu,Yanmar,Mitsubishi |
Optional Air Filter | Standard Air Filter,CycloneDust Filter ,Donaldson 3-stage Air Filter |
Optional Air-conditioner | Cool Air-conditioner,Cool and Heat Air-conditioner,Heater |
OptionalTire | 10-16.5、10-16.5/Big Pattem Tubeless Tire 10-16.5,Wear-resistant Small |
SolidTire250-15/300-15,Steel Track | |
Optional Hydraulic System | lnline Manual Servo Pump,Inline Hydraulic Control |
Optional Fuel System | Antifreezing Fuel System forCold Region |
Product Details

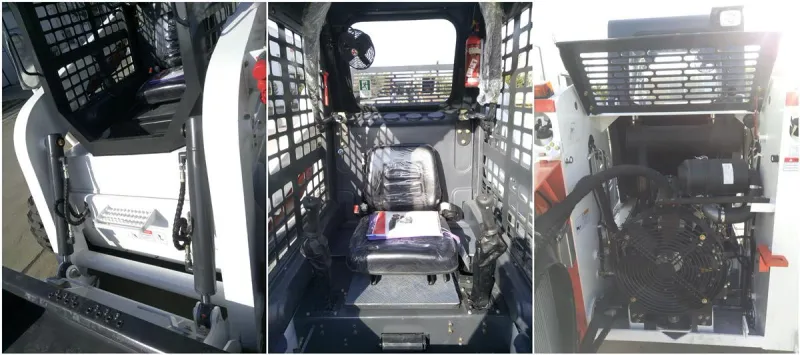

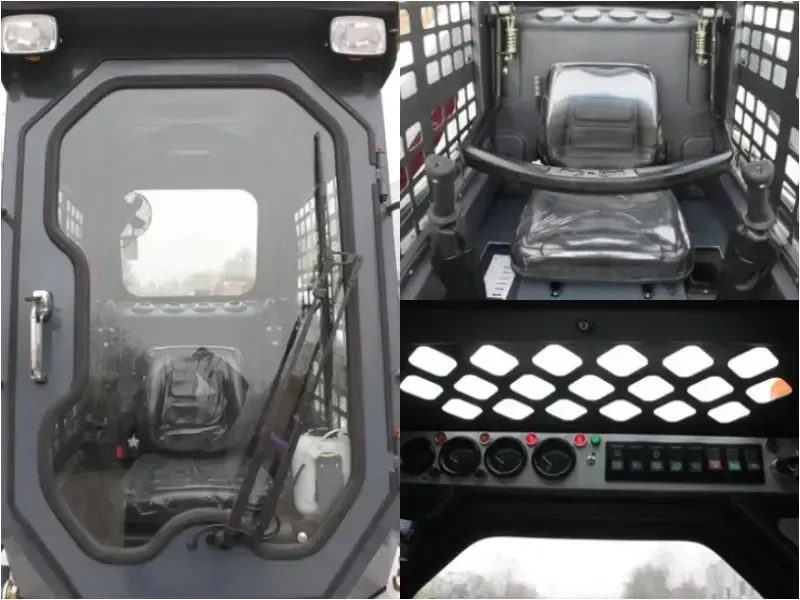

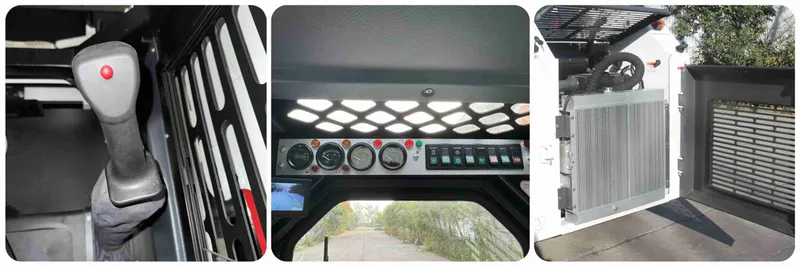

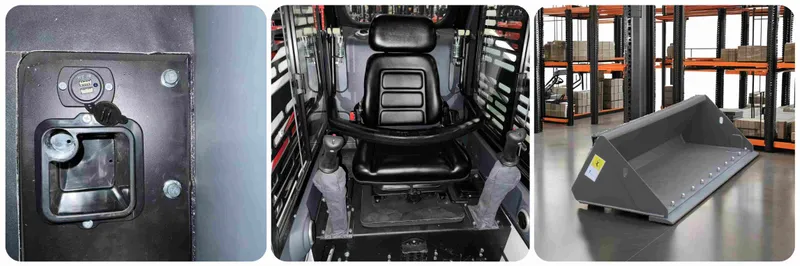

Driving Cabin & JoystickSeat |
 |

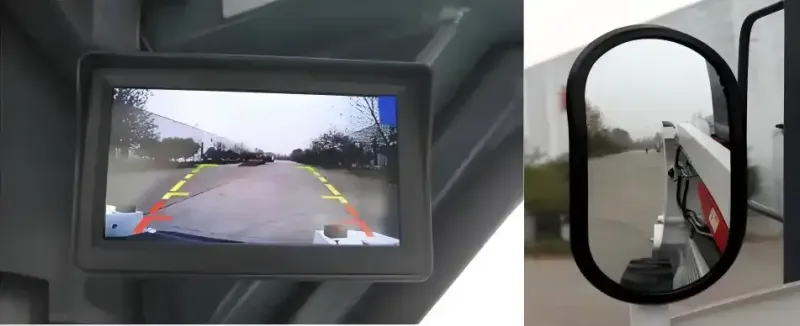

Rear ViewMonitor& Mirror |
|

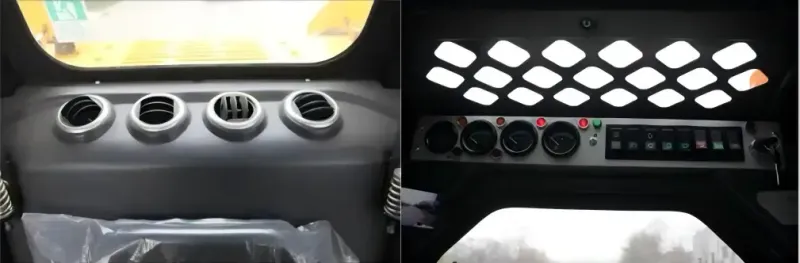

Air Conditioner & Fan |
|

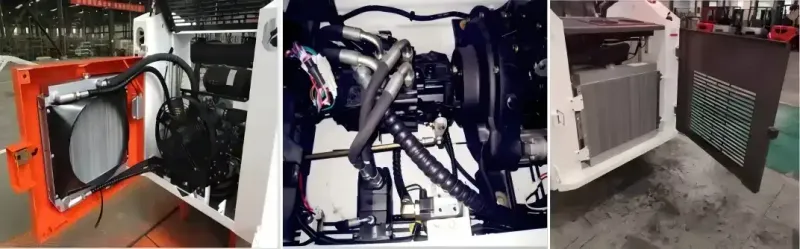

Engine Radiator & Hydraulic Main Pump |
|

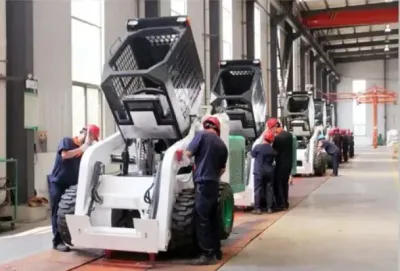

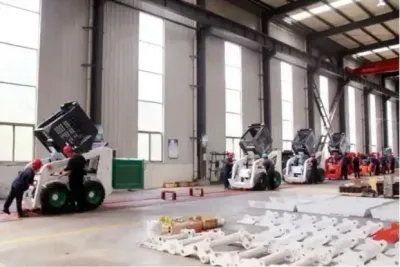

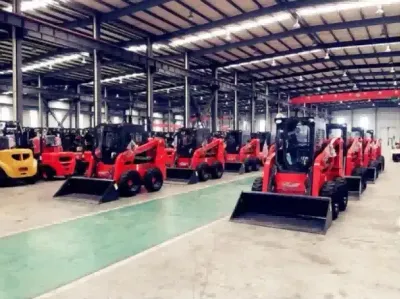

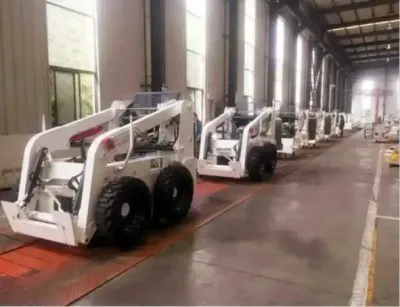

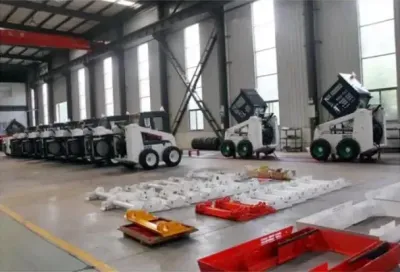

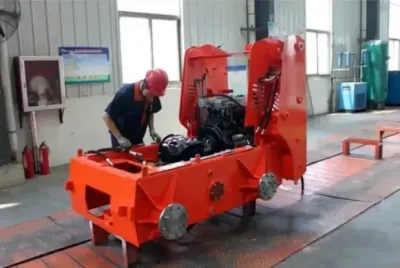

AssemblyProduction |
    |
