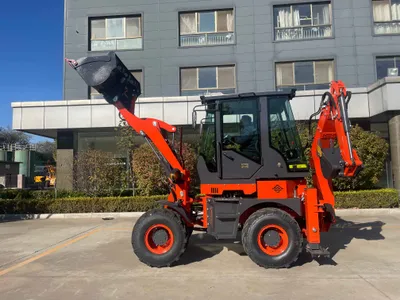

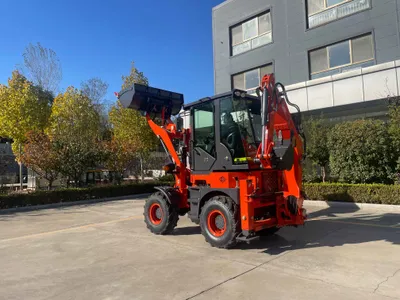

Utility Backhoe Loader

1.Compact & Maneuverable – Ideal for working in confined spaces and urban environments.

2.Versatile – Capable of performing multiple tasks like digging, loading, and trenching with various attachments.

3.Cost-Effective – Lower initial investment and operating costs compared to larger machines.

4.Easy to Transport – Lightweight and easy to transport to different job sites.

5.Fuel-Efficient – Smaller engines consume less fuel, making them more economical for small to medium projects.

6.User-Friendly – Simple controls and easy operation for both new and experienced operators.

Product Details

1.Engine: Yunnei 490 (37kW) for efficient power output.

2.Axle & Tires: Small wheel side axle with 20.5/70-16 tires for enhanced stability and traction.

3.Quick Coupler: Front-mounted quick-change coupler and standard quick-change bucket for easy attachment swaps.

4.Stabilizer Legs: H-type stabilizer legs for superior stability during operation.

5.Comfort: Heating system for operator comfort in cold weather.

6.Hydraulic Side Shift: Hydraulic side shift for easy lateral movement.

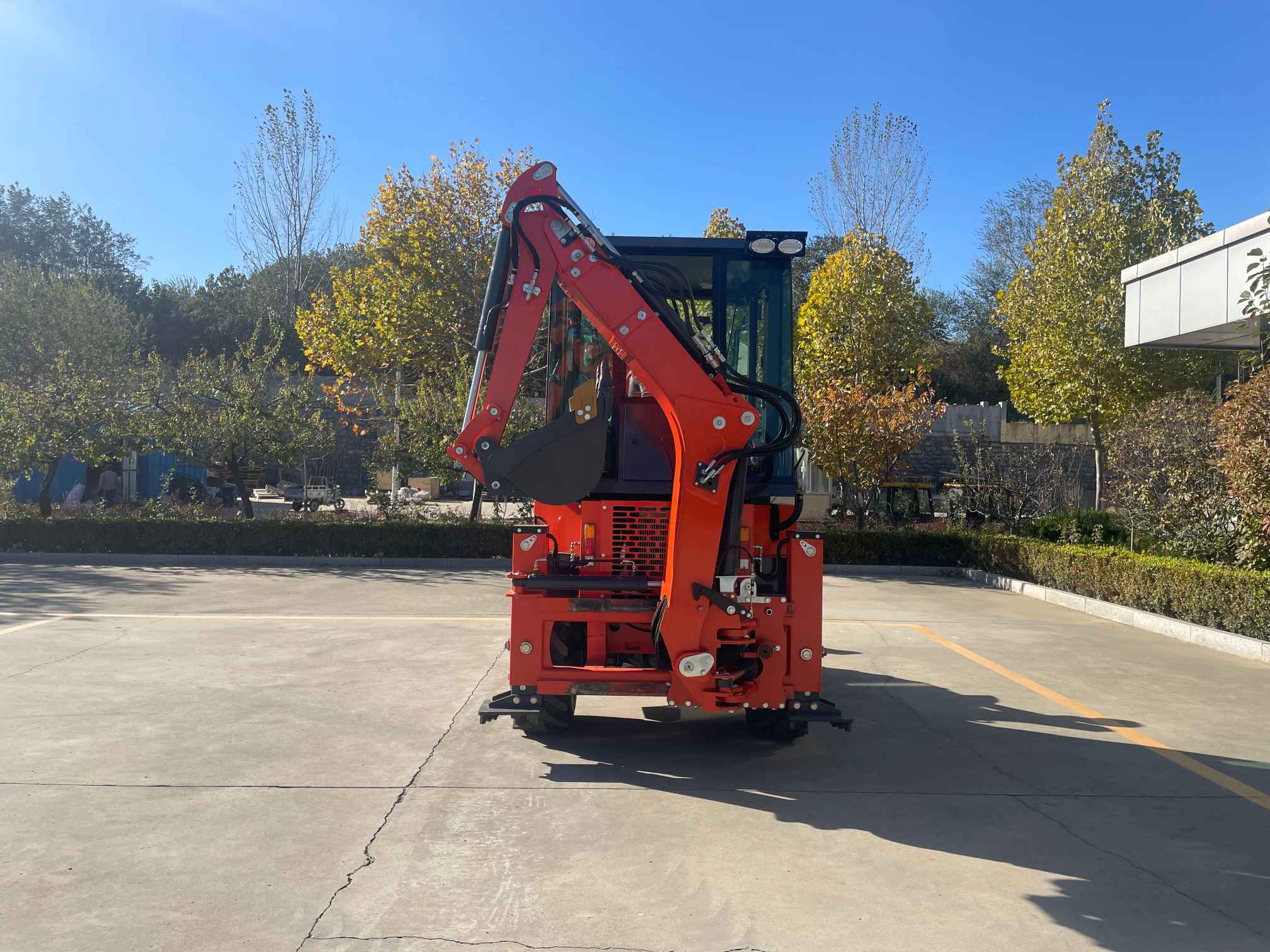

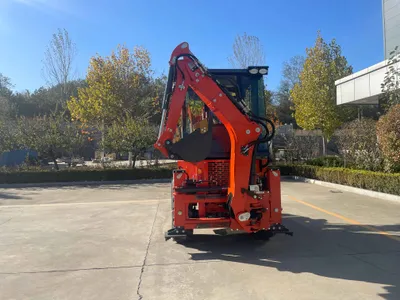

7.Telescopic Boom: Rear excavator with telescopic arm for extended reach and deep digging.

8.This loader offers excellent versatility, durability, and comfort for a range of construction and agricultural applications.

Introduction of the Product

IDENTIFICATION	BRAND
	TOTAL WEIGHT	3500KG
	RATED LOAD	1200KG
	BUCKET DUMPING HEIGHT	2638mm
	BACKHOE CAPACITY	0.2m³
	BACKHOE SWNGANGLE	170°
	MIN.GROUND CLEARANCE	280mm
	MIN.TURNING RADIUS	3000mm
ENGINE	MODEL	490
	RATED OUTPUT	37KW
	DISPLACEMENT	1.2L
TRANSMISSION SYSTEM	CONVERTER MODEL	265
	DRIVE MODEL	AUTO,4WD
	GEAR SHIFTS	2 FORWARD,2REVERSE
TYRE	QUANTITY	2/2(F/R)
TYRE	AXLE	5000KG RATED LOAD
BRAKE SYSTEM	SERVICE BRAKE	OIL BREAK
STANDARD	quick change、electrical display、mechanical joystick、heater、rear camera、warning lights、Radio
