Loader with Backhoe

Product Advantages

1.Compact & Maneuverable – Ideal for working in tight spaces and urban areas.

2.Versatile Functions – Capable of digging, loading, trenching, and material handling with various attachments.

3.Fuel & Cost Efficiency – Lower fuel consumption and operational costs compared to larger machines.

4.Easy Transportation – Lightweight design allows for convenient transport between job sites.

5.User-Friendly Operation – Simple controls and smooth handling for increased productivity.

6.Strong Performance – Equipped with powerful engines and durable components for reliable operation.

7.Multi-Purpose Applications – Suitable for construction, landscaping, farming, and municipal projects.

Product Details

Introduction of the product

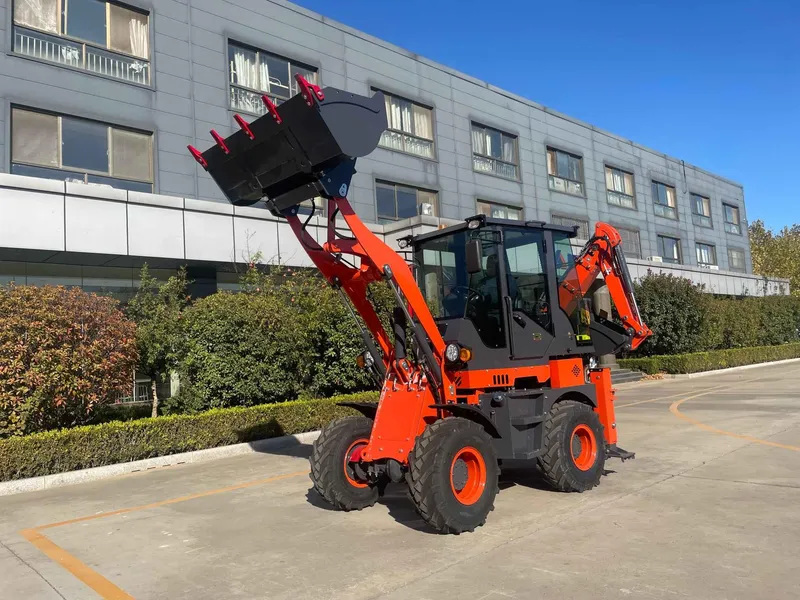

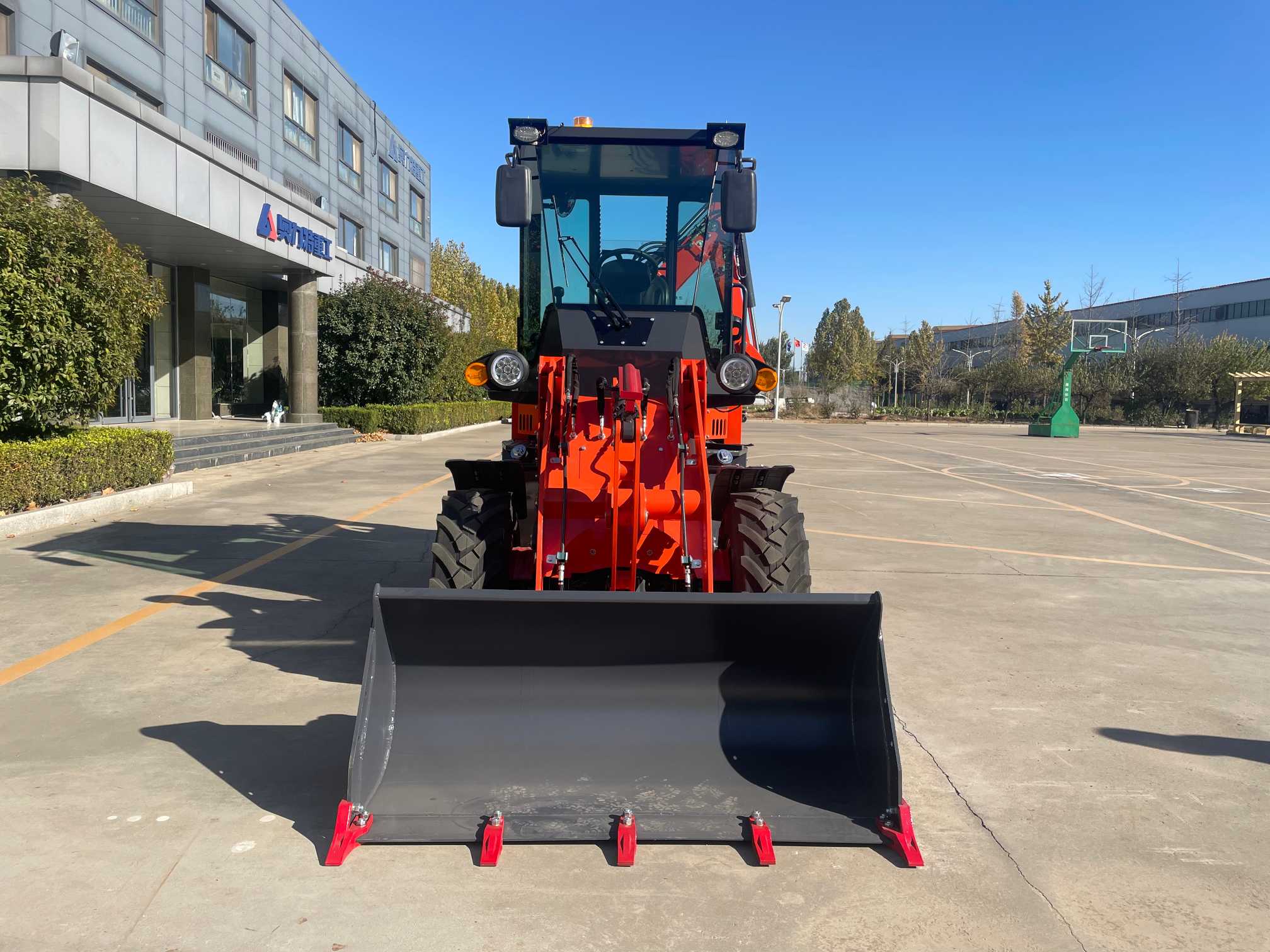

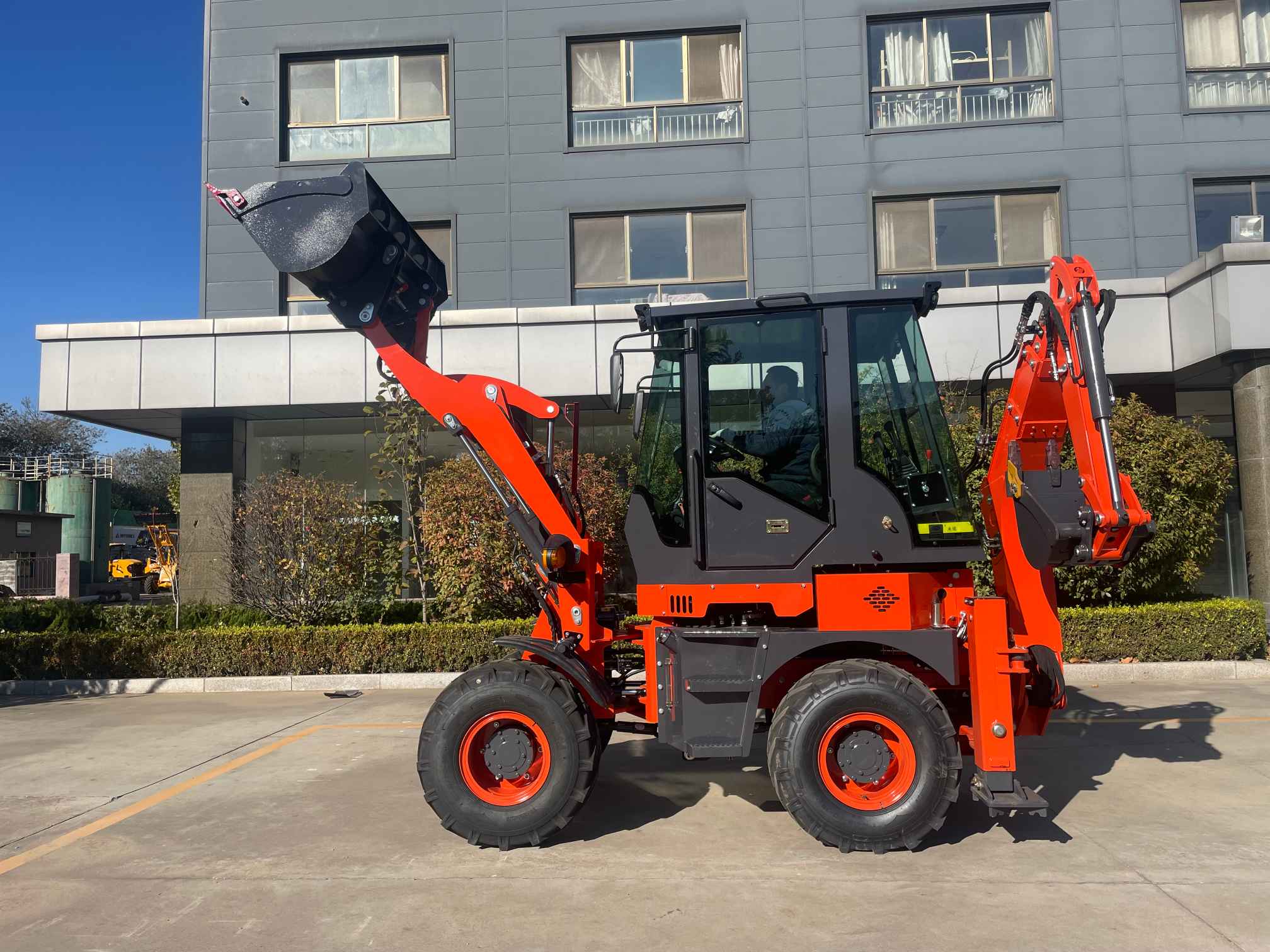

Compact Loader with Backhoe – A highly efficient and maneuverable small-scale machine, combining the strength of a loader with the precision of a backhoe, ideal for tight spaces and versatile construction or landscaping tasks.

1.CE, ROPS/FOPS certificated

2.XINCHAI engine, Euro 5 engines can be optional

3.Max. digging depth is 2630mm perfect for different work condition

4.Mechanical joystick control forward, backward, high and low speed to provide easier operation

5.Well-designed quick hitch can be used for changing different attachments.

6.Different color can be painted: red, green, blue, yellow as u like

Product parameters for Loader with Backhoe

IDENTIFICATION	BRAND
	TOTAL WEIGHT	3500KG
	RATED LOAD	1200KG
	BUCKET DUMPING HEIGHT	2638mm
	BACKHOE CAPACITY	0.2m³
	BACKHOE SWNGANGLE	170°
	MIN.GROUND CLEARANCE	280mm
	MIN.TURNING RADIUS	3000mm
ENGINE	MODEL	490
	RATED OUTPUT	37KW
	DISPLACEMENT	1.2L
TRANSMISSION SYSTEM	CONVERTER MODEL	265
	DRIVE MODEL	AUTO,4WD
	GEAR SHIFTS	2 FORWARD,2REVERSE
TYRE	QUANTITY	2/2(F/R)
TYRE	AXLE	5000KG RATED LOAD
BRAKE SYSTEM	SERVICE BRAKE	OIL BREAK
STANDARD	quick change、electrical display、mechanical joystick、heater、rear camera、warning lights、Radio
