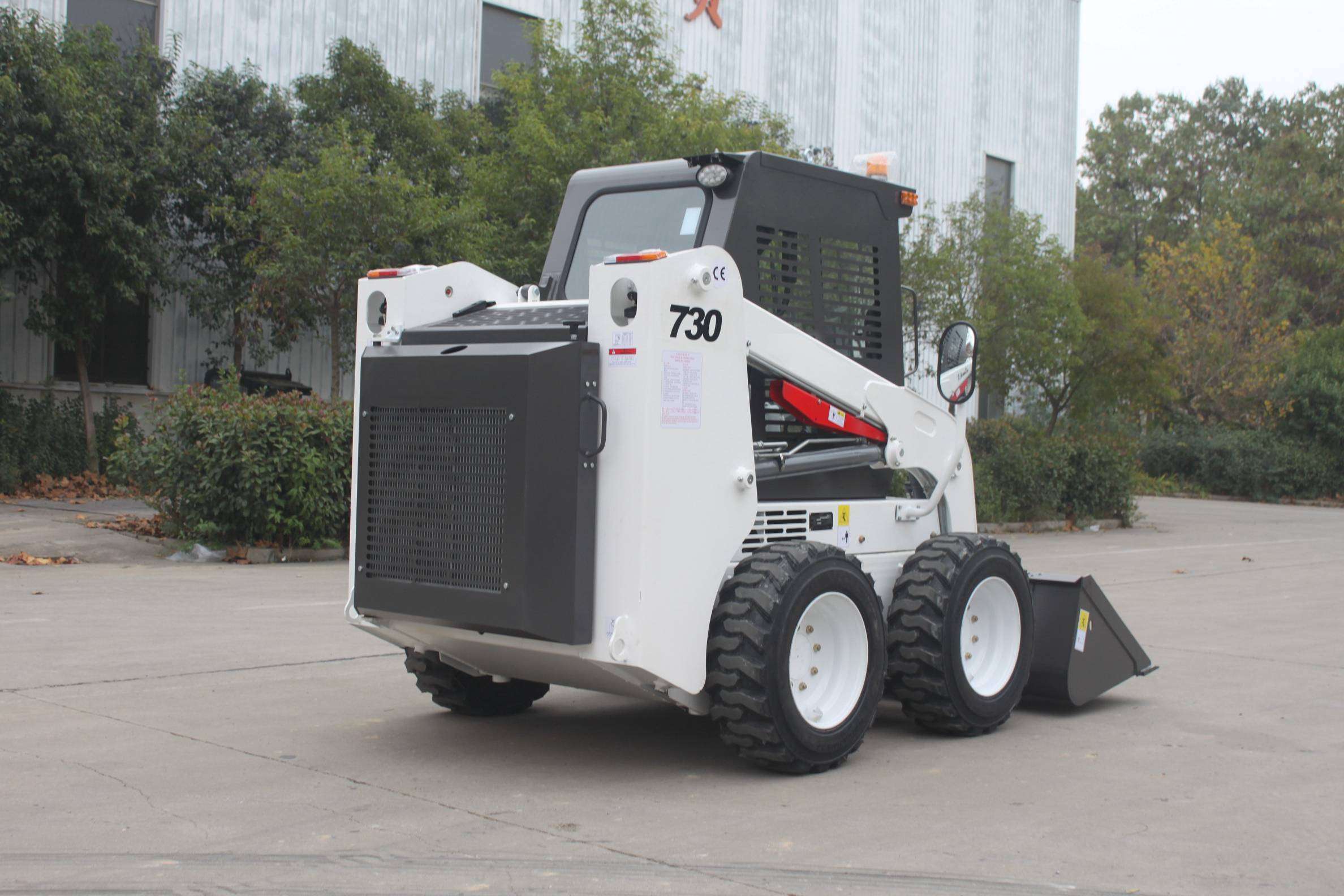

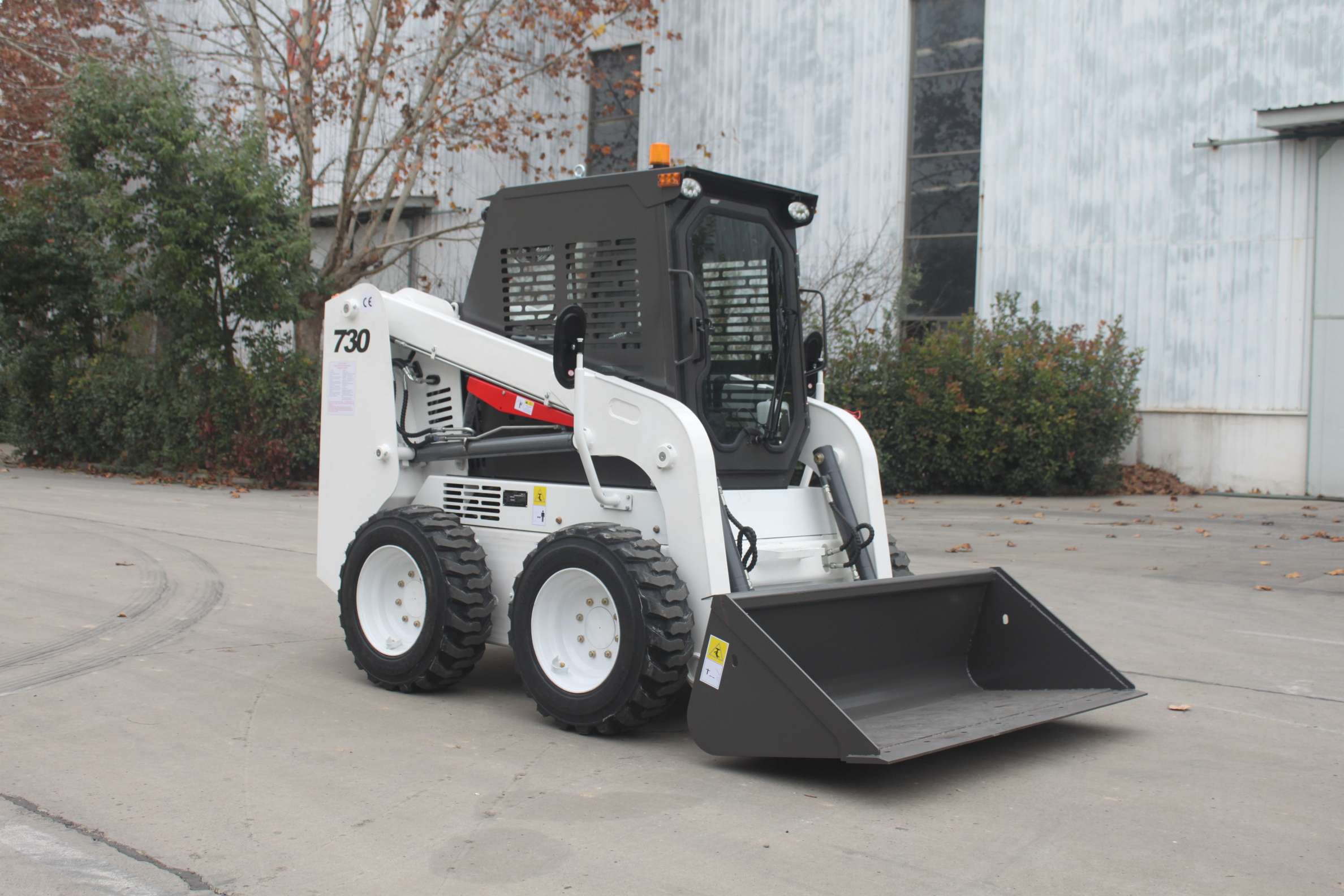

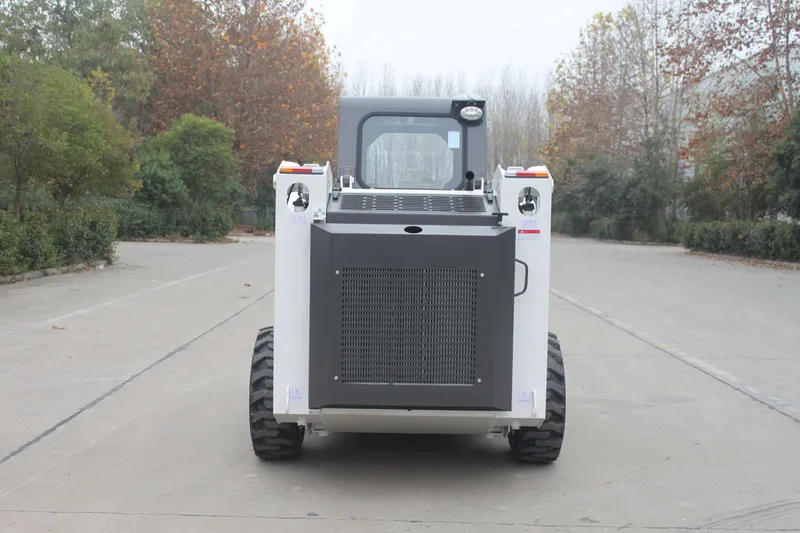

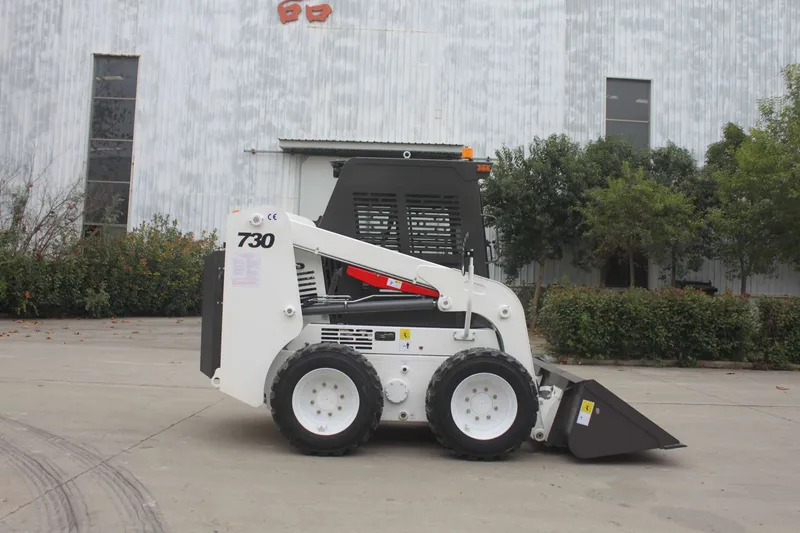

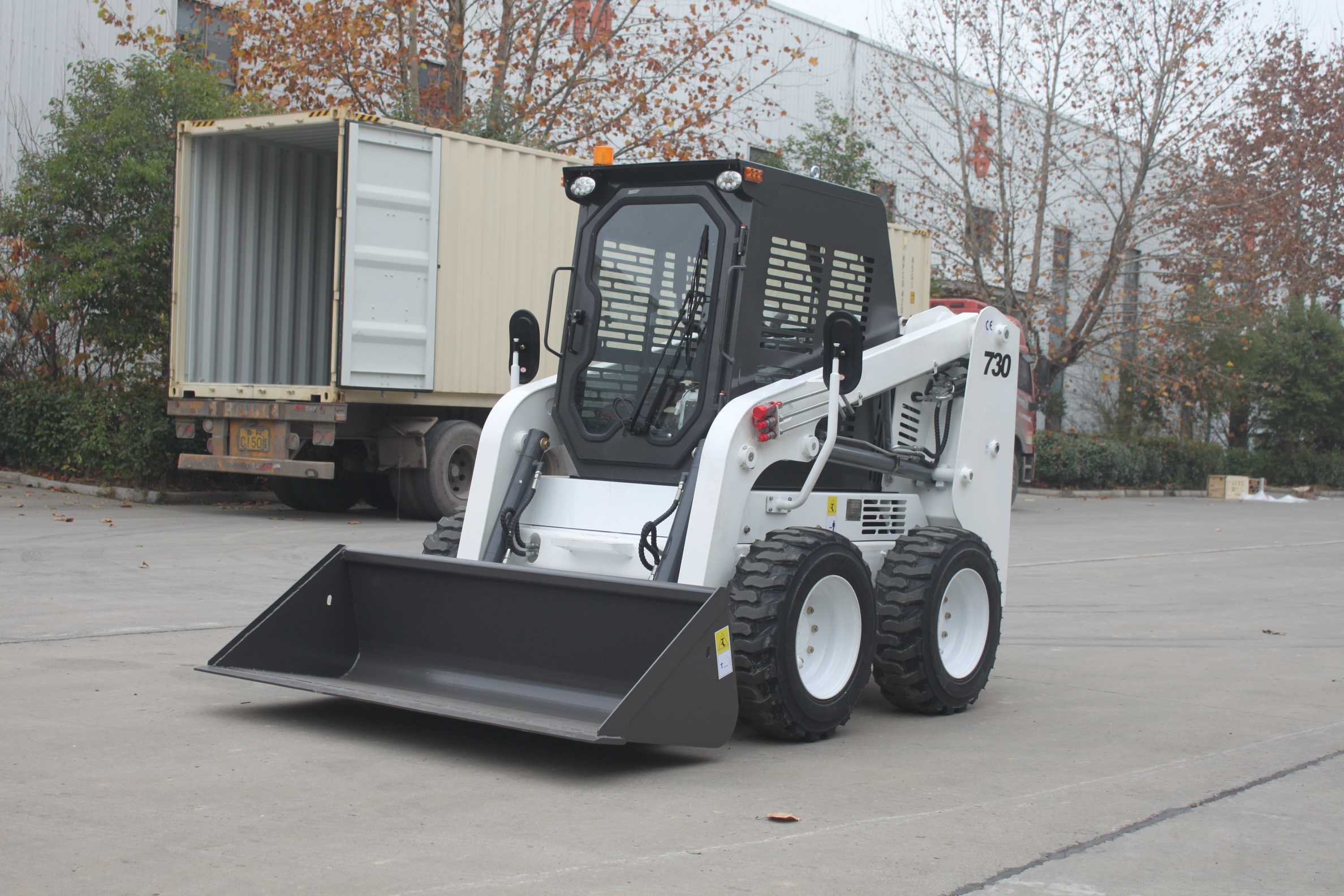

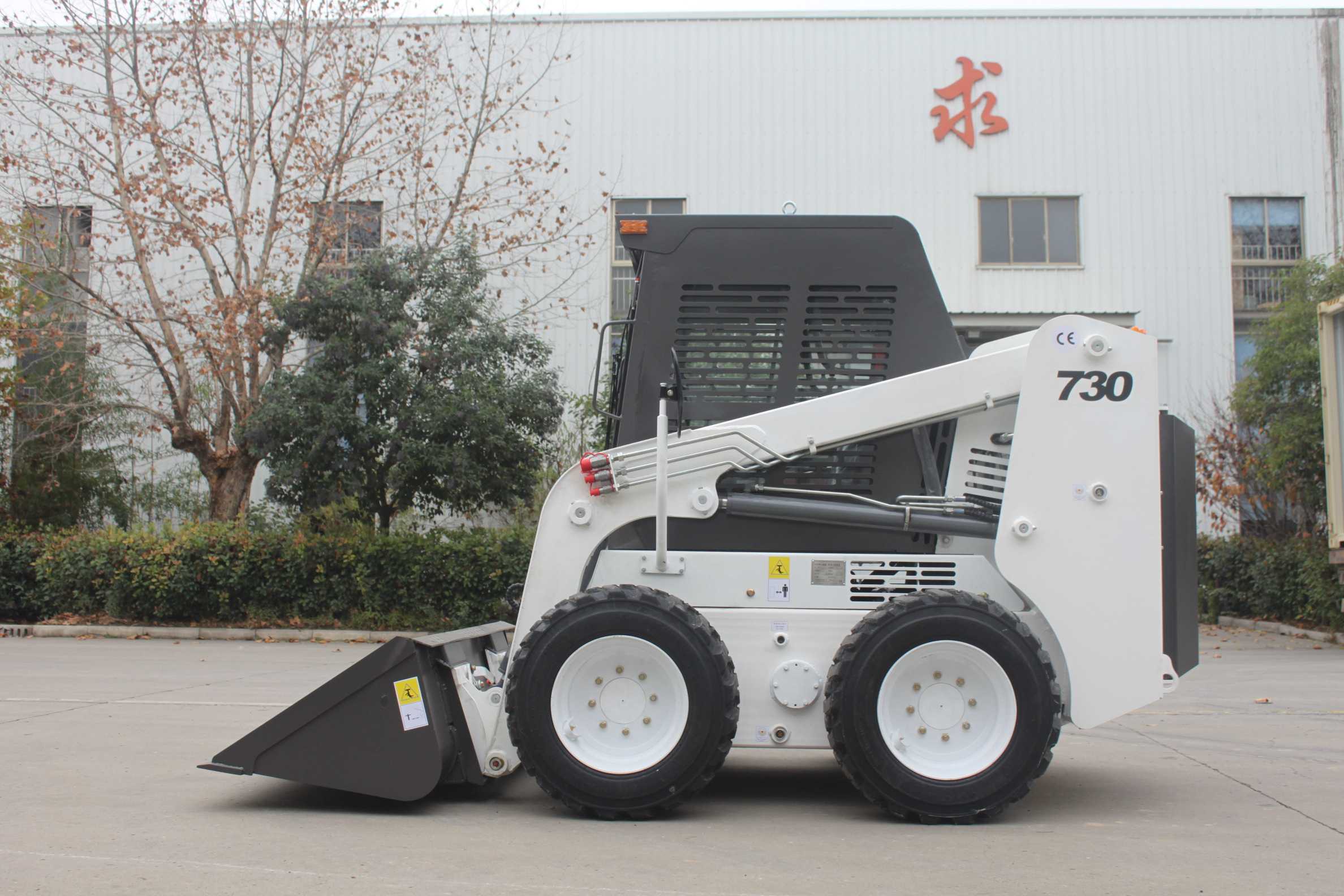

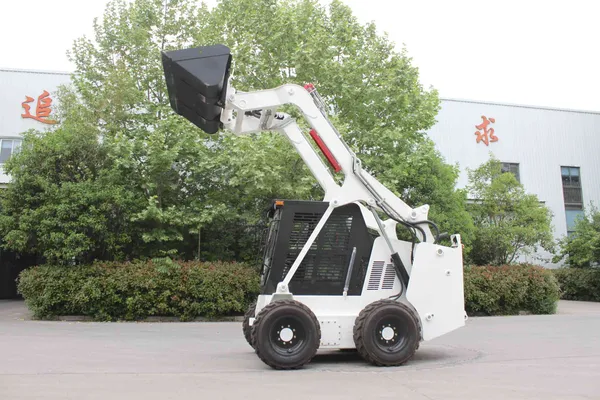

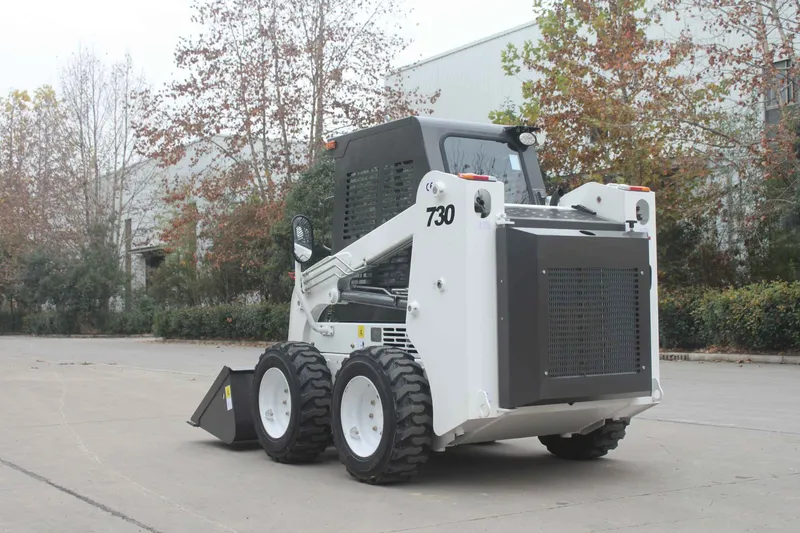

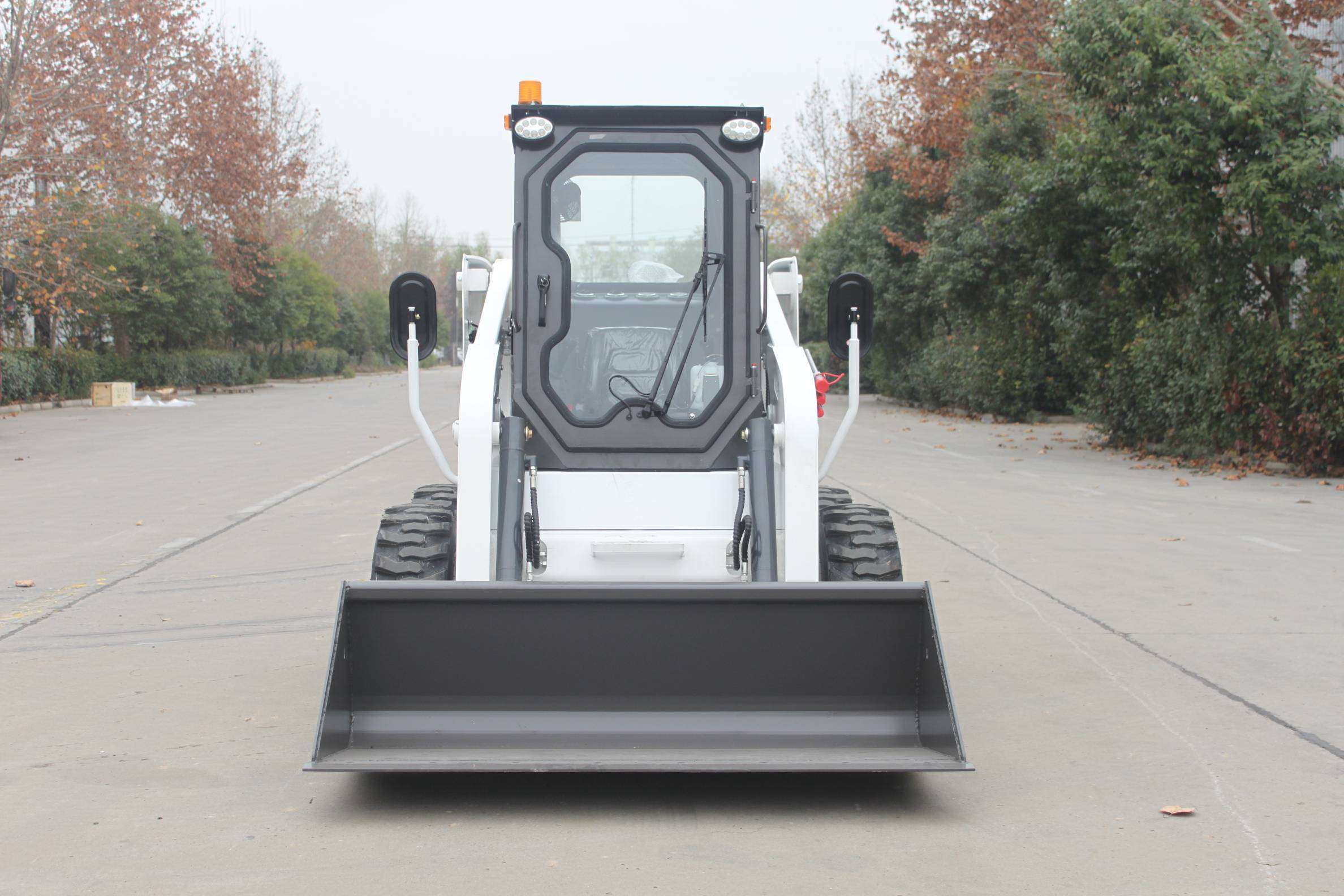

Skid Steer loader 730

Product Advantages

1.Rated Power：39KW.

2.Skid Steer loader can be equipped with more than 20 series of attachments for option.

3.CE certified, ensuring full compliance with EU safety and quality standards.

4.Offers full customization options to meet specific operational needs.

5.Supplied with a comprehensive machinery test report and outgoing inspection video to ensure product reliability and peace of mind.

Product Details

Introduction of the Product

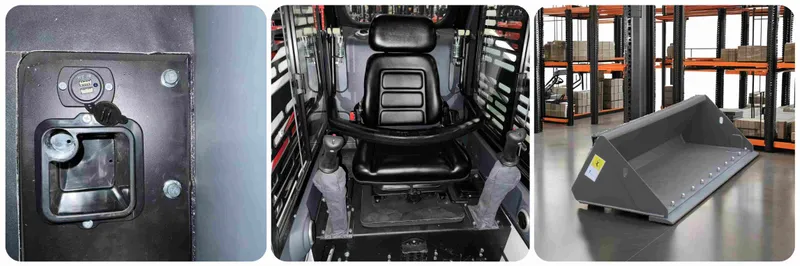

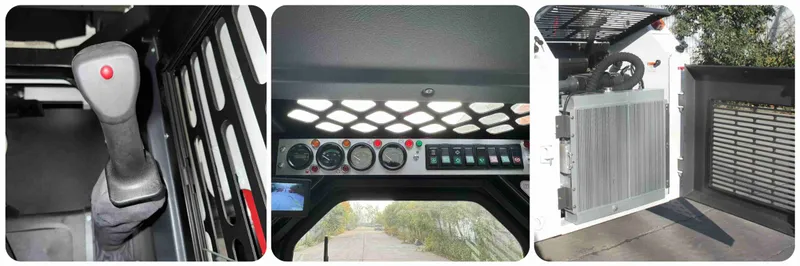

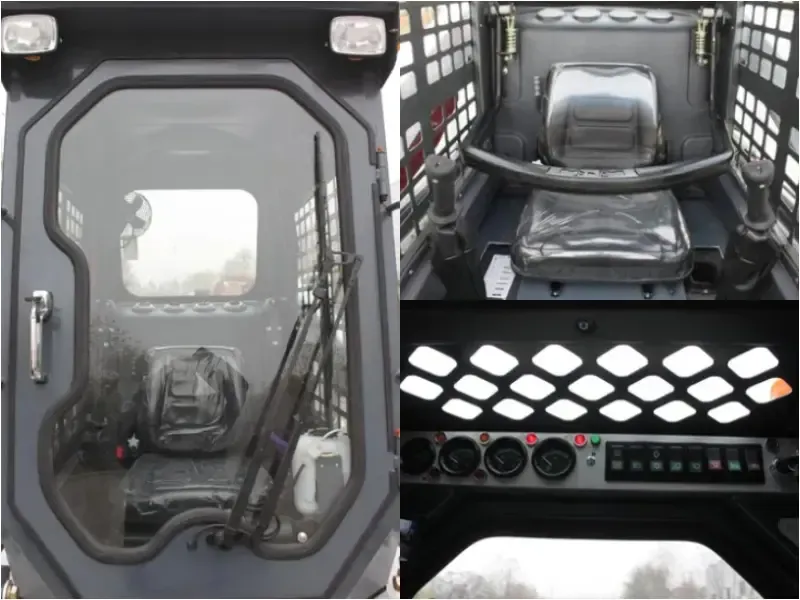

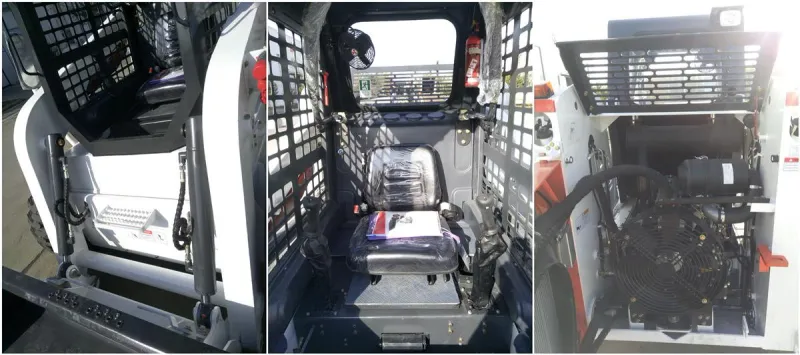

1. Safe and comfortable bran-new operator environment , Highly reliable ROPS and FOPS cabin.

2.World -class quality power source ,Amercia Danfoss pump , France Poclain hydraulic motor with parking brake.

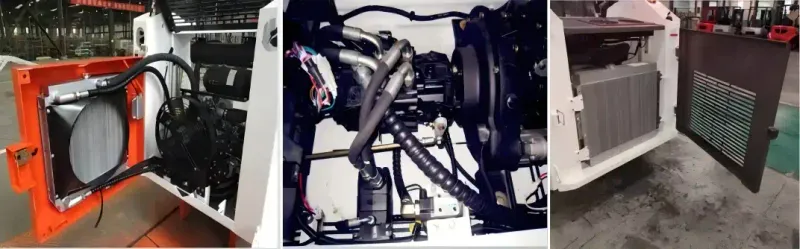

3. The upper cover open easily. Cabin wide-angle turn , it is more conveninet for daily maintenance .

4. The skid steer loader offers a long lifespan and an easy-to-use driving system.

5. 360 degree steering , can work with 40 kinds of attachments, auger , breaker, trancher , 4 in 1 bucket, pallet fork etc..

Product Details

1. Safe and comfortable bran-new operator environment , Highly reliable ROPS and FOPS cabin.
2. World -class quality power source ,Amercia Danfoss pump , France Poclain hydraulic motor with parking brake.
3.The upper cover open easily. Cabin wide-angle turn , it is more conveninet for daily maintenance .
4.Long life and easy driving system.
5.360 degree steering , can work with 40 kinds of attachments, auger , breaker, trancher , 4 in 1 bucket, pallet fork etc..

Parameters

Model	730
Engine Model	China Engine
Rated Power(KW)	39
Rotating Speed(rpm)	2650
Max.Speed(km/h)	12
Tire	10-16.5
Operating Load(kg)	730
Max.Loading(kg)	1460
Lifting Type	Radial
Total Cycling Time(s)	10.2
Bucket Capacity(m3)	0.47
Pressure Of Working System (bar)	180
Rated Flux(L/min)	80
High Flow Flux(L/min)	without
Fuel Tank Capacity(L)	81
Self-weight With Bucket(kg)	2850
Control Type	Manual/ Joysticke
Overall Operating Height (mm)	3897
Height To Bucket Hinge Pin (mm)	2982
Height To Top Of Cab(mm)	2090
Height To Bottom Of Level Bucket(mm)	2855
Overall Length Without Bucket(mm)	2536
Overall Length With Bucket(mm)	3352
DumpingHeight (mm)	2266
Dumping Reach (mm)	662
Rollback Of Bucket On Ground()	25
Ground Clearance (mm)	210
Angle Of Departure()	30
Front TurningRadius without Bucket(mm)	1252
Front Turning Radius(mm)	2052
Rear Turning Radius (mm)	1516
Width (mm)	1730
BucketWidth(mm)	1800

Optional Configuration
Optional Engine	Xinchai,Quanchai,Kohler,Japan Isuzu,Yanmar,Mitsubishi
Optional Air Filter	Standard Air Filter,CycloneDust Filter ,Donaldson 3-stage Air Filter

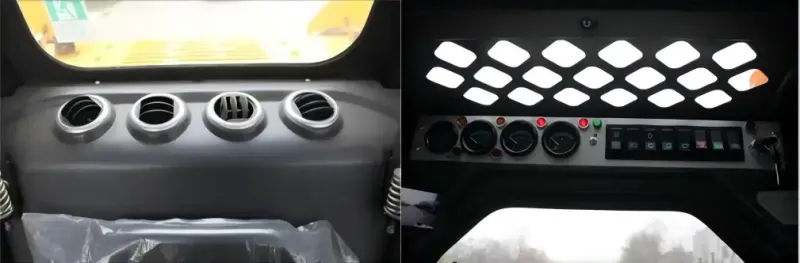

Optional Air-conditioner	Cool Air-conditioner,Cool and Heat Air-conditioner,Heater
OptionalTire	10-16.5、10-16.5/Big Pattem Tubeless Tire 10-16.5,Wear-resistant Small Patterm Pneumatic Tire 10-16.5 for Pasture
OptionalTire	SolidTire250-15/300-15,Steel Track
Optional Hydraulic System	lnline Manual Servo Pump,Inline Hydraulic Control Pump,Inline Hydraulic Motor,France Poclain Motor
Optional Fuel System	Antifreezing Fuel System forCold Region
