Introduction of the Product

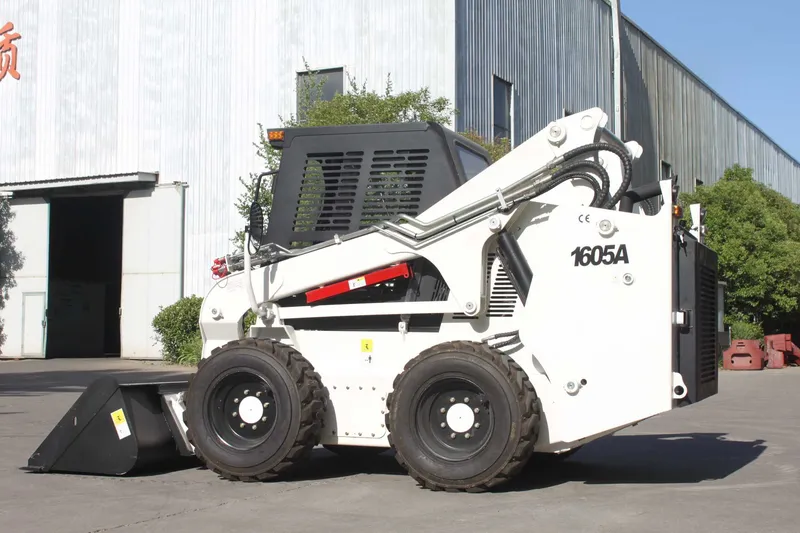

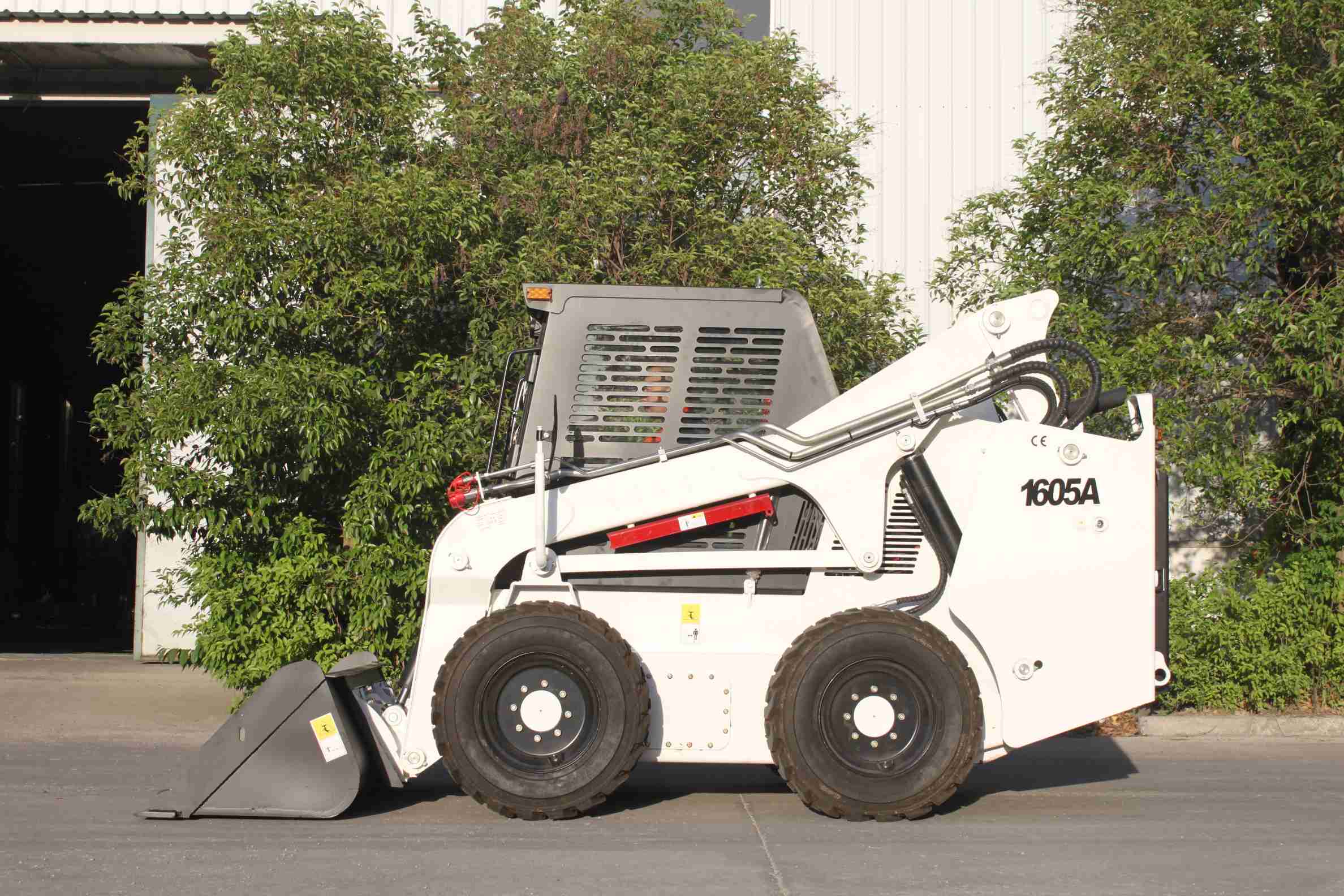

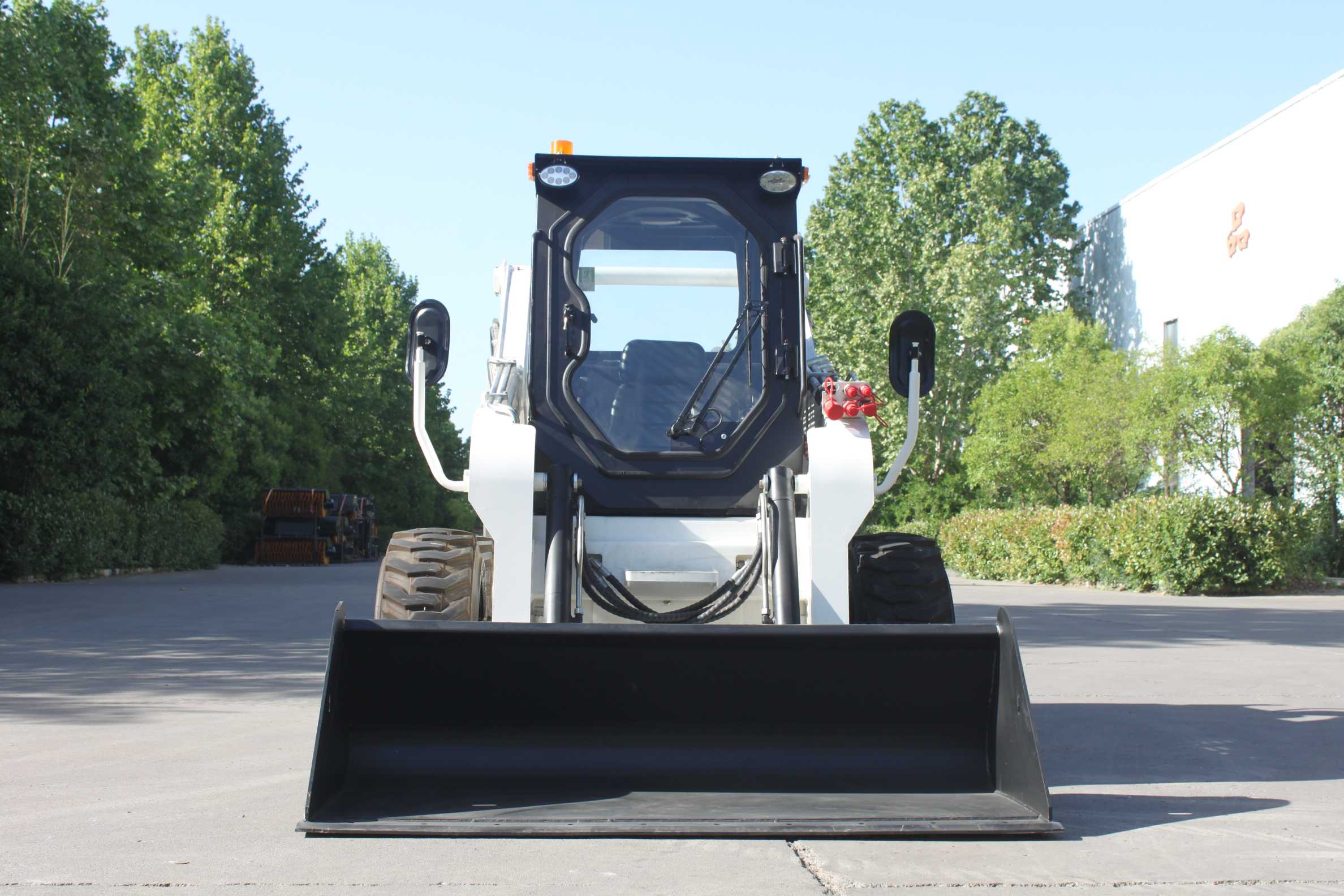

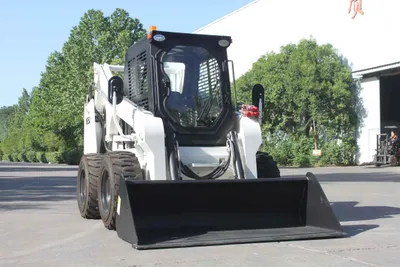

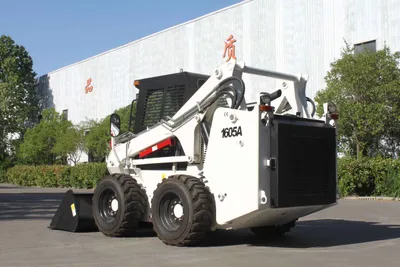

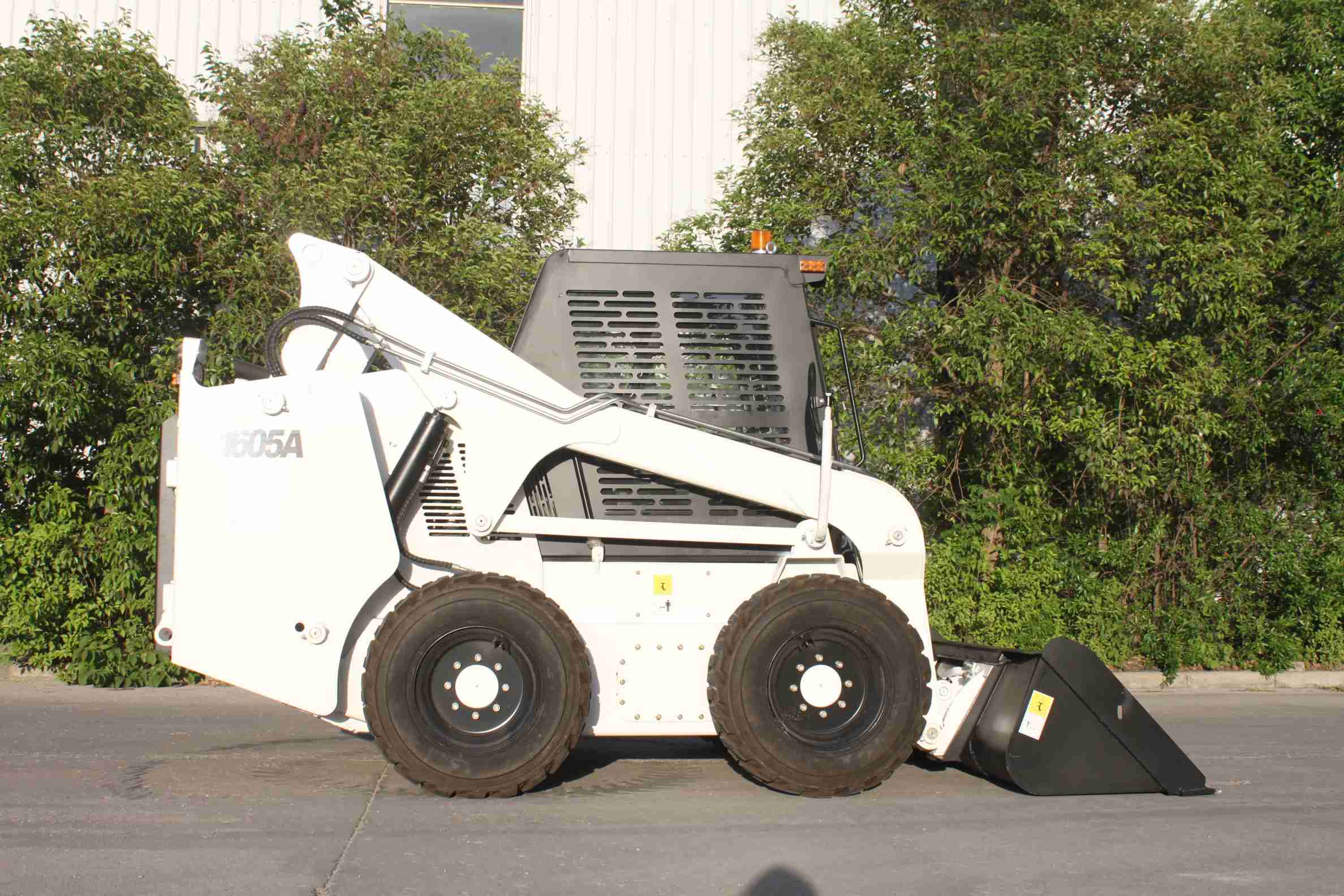

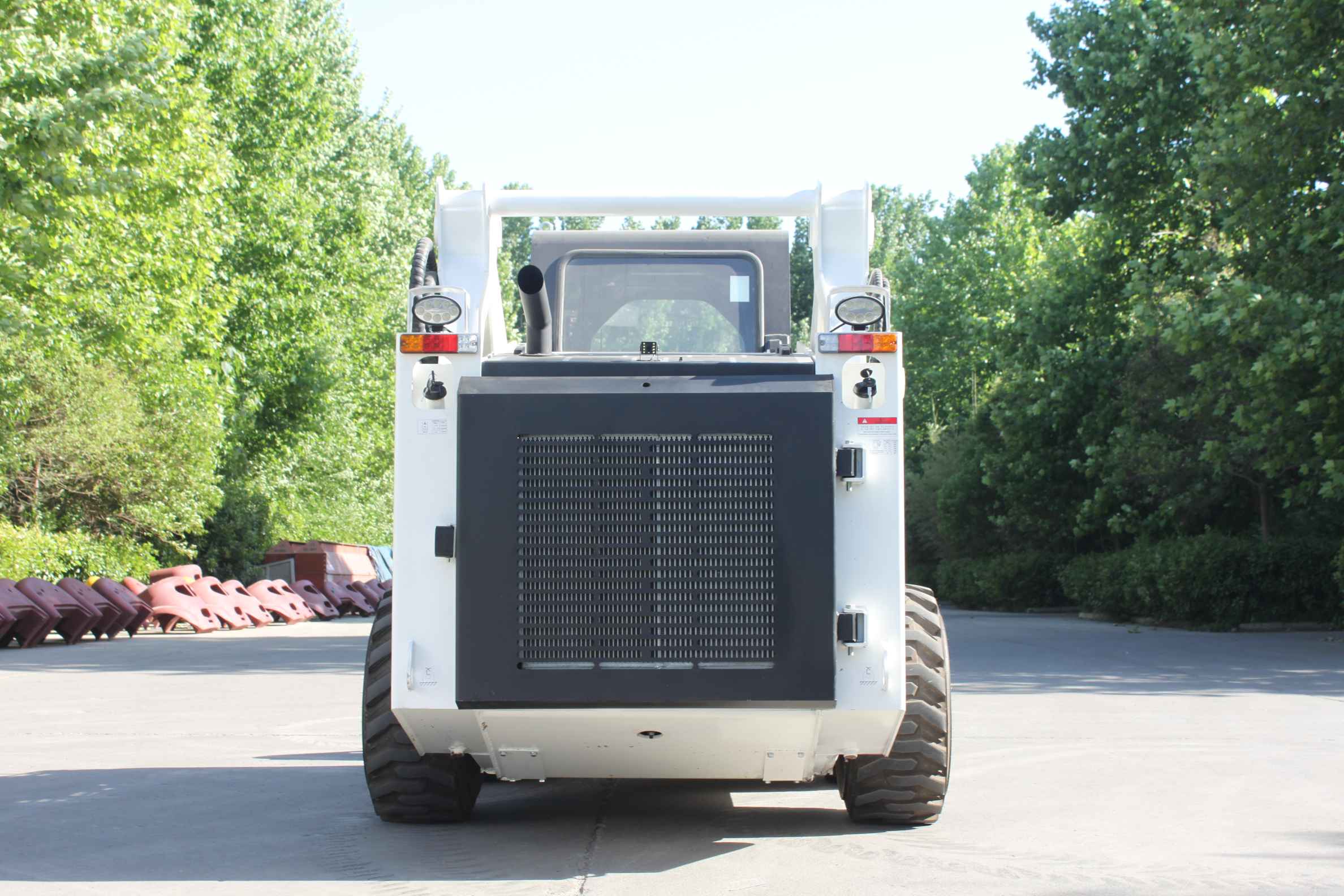

This Large Multifunction Skid Steer Loader Model 1605 Product advantages: Imported platinum engine with radiator behind, better heat dissipation. Imported double pump, two-speed motor, vertical lifting, longer unloading distance. It is the model of choice for highway, municipal and garden
Configuration:
1.EUROIII uk perkins engine 1104d-44t 74kw
2.rexroth pump
3.rexroth double speed motor with parking brake
4.rexroth control valve with safty lock
5.rexroth hydraulic joystick
6.america electromagnetic valve
7.america hydraulic balance valve
8.america bearing
9.america 3 stage air filter
10.closed cab with heater,fan,warning light
11.reverse buzzer
12.12-16.5 tubeless tire 12-16.5
13.mirror outside cab
14.front & rear turning light,rear width light
15.special big aluminium radiator
Parameters
Model | 1605A |
Engine Mode | China Engine/Tier3 |
Rated Power(KW2) | 74.5 |
Rotating Speed(rpm) | 2200 |
Max.Speed (km/h) | 10.2/20.4 |
Tubeless Tire | 12-16.5 |
Operating Load (kg) | 1600 |
Max.Loading(kg) | 3200 |
Lifting Type | Vertical |
Total Cycling Time(s) | ≤11.2 |
Bucket Capacity(m3) | 0.55 |
Pressure Of Working System (bar) | 235 |
Rated Flux(Vmin) | 88 |
High Flow Flux(L/min) | 158 |
Fuel Tank Capacity(L) | 82 |
Self-weight With Bucket(kg) | 4260 |
Overall Operating Height(mm) | 4234 |
Height To Bucket Hinge Pin(mm) | 3295 |
Height To Top Of Cab(mm) | 2080 |
Height To Bottom Of Level Bucket(mm) | 3100 |
Overall Length Without Bucket(mm) | 2878 |
Overall Length With Bucket(mm) | 3666 |
Dumping Height (mm) | 2540 |
Dumping Reach(mm) | 850 |
Rollback Of Bucket On Ground(°) | 27 |
Ground Clearance(mm) | 218 |
Angle Of Departure(°) | 26 |
Front Turning Radius Without Bucket(mm) | 1540 |
Front Turning Radius(mm) | 2200 |
Rear Turning Radius(mm) | 1710 |
Width(mm) | 1864 |
Bucket Width(mm) | 1980 |
